Welding Table Leg
Welding Table Leg
Divided into the following types:
Standard Leg
The standard leg is available in various heights and is adjustable up to a height of 35 mm.
|
28 series |
16 series |
||||
|
Part No. |
Specification (mm) |
Weight (Kg) |
Part No. |
Specification (mm) |
Weight (Kg) |
|
TTK2871001 |
|
6.00 |
TTK2871001 |
|
6.00 |
|
TTK2871002 |
|
7.00 |
TTK2871002 |
|
7.00 |
|
TTK2871003 |
|
8.50 |
TTK2871003 |
|
8.50 |
|
TTK2871004 |
|
10.50 |
TTK2871004 |
|
10.50 |
89x200
89x200
89x350
89x350
89x450
89x450
89x620
89x620
Leg With Universal Wheel
The leg with a universal castor provides the table with both stability and flexibility, enabling unrestricted movement within the room. The table can be fixed in place using the locking brake.
|
28 series |
16 series |
||||
|
Part No. |
Specification (mm) |
Weight (Kg) |
Part No. |
Specification (mm) |
Weight (Kg) |
|
TTK2871101 |
|
9.00 |
TTK2871101 |
|
9.00 |
|
TTK2871102 |
|
10.50 |
TTK2871102 |
|
10.50 |
|
TTK2871103 |
|
11.00 |
TTK2871103 |
|
11.00 |
|
TTK2871104 |
|
13.50 |
TTK2871104 |
|
13.50 |
89x200
89x200
89x350
89x350
89x450
89x450
89x620
89x620
Fixable Leg
The fixable leg allows the table to be secured to the floor, increasing stability. The leg sleeve prevents dirt from entering the threaded spindle and protects the welding hose from damage.
|
28 series |
16 series |
||||
|
Part No. |
Specification (mm) |
Weight (Kg) |
Part No. |
Specification (mm) |
Weight (Kg) |
|
TTK2871201 |
|
7.00 |
TTK2871201 |
|
7.00 |
|
TTK2871202 |
|
8.50 |
TTK2871202 |
|
8.50 |
|
TTK2871203 |
|
9.00 |
TTK2871203 |
|
9.00 |
|
TTK2871204 |
|
11.50 |
TTK2871204 |
|
11.50 |
89x200
89x200
89x350
89x350
89x450
89x450
89x620
89x620

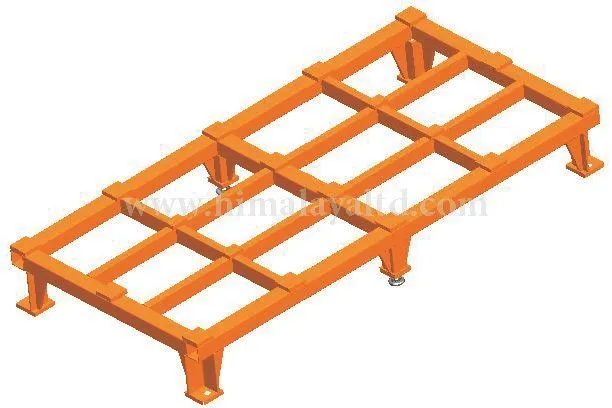

Frame Support
The frame support is particularly suitable for large or heavy objects. When combined with the welding table, it is fastened by bolting onto the foundation rails, ensuring safe operation. The height of the frame is either 620 mm or 350 mm-special sizes are available upon request.
|
28 series |
16 series |
||||
|
Part No. |
Specification (mm) |
Weight (kg) |
Part No. |
Specification (mm) |
Weight (kg) |
|
TTK2871301 |
1000x1000x400 |
95.00 |
TTK1671301 |
1000x1000x400 |
72.00 |
|
TTK2871302 |
1200x1200x400 |
125.00 |
TTK1671302 |
1200x800x400 |
68.00 |
|
TTK2871303 |
1500x1000x400 |
175.00 |
TTK1671303 |
1200x1200x400 |
97.00 |
|
TTK2871304 |
1500x1500x400 |
245.00 |
TTK1671304 |
1500x1000x400 |
132.00 |
|
TTK2871305 |
2000x1000x400 |
210.00 |
TTK1671305 |
1500x1500x400 |
205.00 |
|
TTK2871306 |
2400x1200x400 |
310.00 |
TTK1671306 |
2000x1000x400 |
188.00 |
|
TTK2871307 |
3000x1500x400 |
412.00 |
TTK1671307 |
2400x1200x400 |
275.00 |
|
TTK2871308 |
4000x2000x400 |
550.00 |
|||

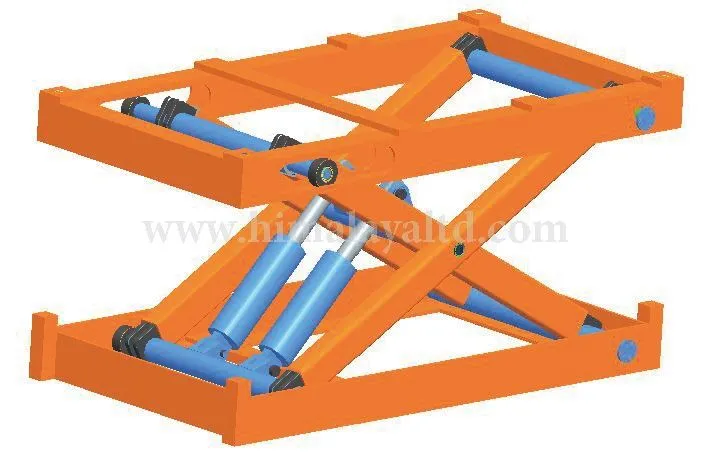

Hydraulic Scissor Lift
The hydraulic scissor lift is equipped with hydraulic control systems for quick height adjustment. It facilitates work with heavy assemblies and welding. The maximum lift weight is 2 tons.
|
28 series |
||
|
Part No. |
Specification (mm) |
Weight (kg) |
|
TTK2871401 |
2000x1000 |
385.00 |
|
TTK2871402 |
2400x1200 |
465.00 |
Rail System
The rail system offers a great solution for the production of large components, providing a horizontal surface with grid bores over the entire area. The rail system is installed according to your requirements, with options for over-floor or underfloor installation.
|
28 series |
||
|
Part No. |
Specification (mm) |
Weight (kg) |
|
TTK2871501 |
1000x150x50 |
55 |
|
TTK2871502 |
2000x150x50 |
110 |
|
TTK2871503 |
3000x150x50 |
165 |
