Boom Pump
Boom Pump Description
Features:
The boom pump is 62 meters long and reaches a maximum output of 180 cubic meters per hour. It uses X-legs and 6RZ booms.
Pumping System: Model C10, 2020 (100% 2020, not false information), using a 4-axle, Euro 5 Volvo chassis, in very good condition. The maximum pressure is 32 MPa, and all functions are running well.
One-button Technology
The one-button fixed boom position function quickly dampens any boom movement resulting from repositioning. This allows for precise positioning of the end hose.
Boom Anti-Vibration Technology
The boom anti-vibration technology reduces vibration during pumping by 50%, allowing for less movement and greater control of the end hose.
Energy-saving Technology
Diesel consumption decreases by 10%.
Anti Overswing Technology
Longer Life Time Wearing Parts
Delivery pipe
Discharge port/transition bushing
Concrete piston
Wear plate / cutting ring
Delivery cylinder
Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Reviewing the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One-touch control of boom extension and retraction makes operation more convenient.
Operators can program height limits as needed.
The intelligent system can also coordinate other operations.
Safety Protection Technology
When the boom cylinder is overloaded, the protection system will issue a reminder.
After the work is completed, the agitator will be safely shut down.
Advanced boom anti-interference technology is used to allow the boom pump to operate safely and stably.
Electric Control Cabinet: The clear control interface allows operators to quickly find the buttons they need to operate, improving work efficiency.
Specifications and Status:
| Item | Specification | Remarks |
| Brand | SANY | No.1 on the concrete pumps in the world |
| Model | SYM5440THBV | reliable and popular model |
| Chassis | VOLVO FM500 84R B | reliable, imported from Sweden; |
| Drive Form | 8X4 | |
| wheelbase(mm) | 1995+4405+1370 | |
| Engine | D13C500S EUV | |
| Displacement(L) | 12.777 | |
| Power(HP) | 500(368KW) | |
| Max. torque(Nm/(r/min)) | 2550(1200) | |
| Emission level | Euro 5 | |
| Gearbox | AMT(Automated manual transmission) | |
| Tyers | 385/65R22.5 20PR, 315/80R22.5 18PR | |
| Max. Veitical reach(m) | 61.1 | |
| Horizontal reach(m) | 55.9 | |
| Number of boom | 6(X-62-6RZ) | |
| Main oil pump | Rexroth | double main oil pump: Germany Rexroth |
| Output (High/Low-pressure)(m3/h) | 180 | |
| Pressure (High/Low-pressure)(Mpa) | 13 | |
| Supporting leg(Shape) | X | |
| Gross Vehicle Weight(KG) | 44000 | |
| Net Weight(KG) | 43870 | |
| Dimensions(mm*mm*mm) | 14580*2550*4000 | |
| Others | Original equipment + totally new tires + totally new pipelines, hydraulic oil is in good condition, all functions work fine. | |
| Date of production | 2020.03 | |
| Date of registration | 2020.05 | |
| Mileage(Km) | 23,092 | |
| Working hours of pump system(h) | 1,385 | |
| Pumping volume(m3) | 95,800 | |
| Status ★★--bad ★★★--OK ★★★★--good ★★★★★--Outstanding | ★★★★★ | outstanding, see as pictures and video |

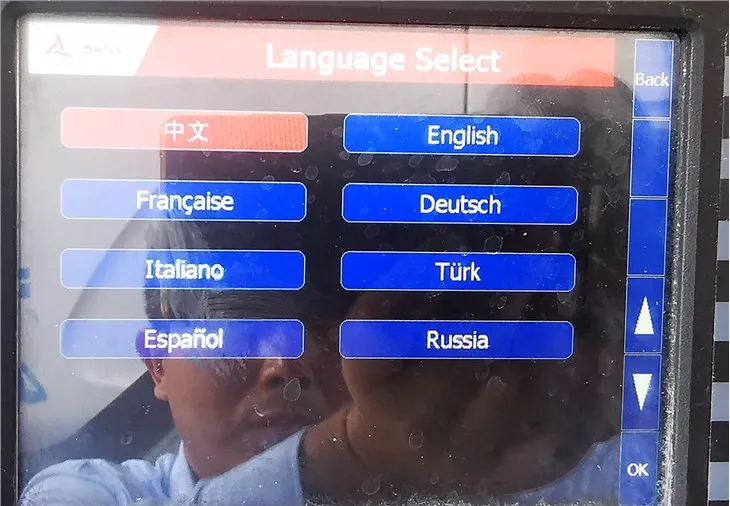

| Language of Operating System | На ваш язык | Multilanguage: Chinese, English, Russian, Arabic, French, Spanish, German, and Turkish language |
| Location | Сhangsha, China | SANY and Zoomlion factories are located in Changsha City, we have all the resources and advantages: remanufacturing factory+all spare parts+engineers+technology |
Benefits Of Using A CONCRETE Boom Pump:
Less Manpower
There is no longer a need for wheelbarrows and manual transportation of the concrete to the desired location, so you'll use less manpower to get the job done! It's also quicker and more convenient. You can reduce costs by letting the concrete pump do the heavy lifting that would otherwise need to be done by a small team of workers.
Precision Means Less Waste
Pumps are more precise, which means less time on the job and a reduction in waste. Pouring directly into the desired location eliminates another link in the transportation chain. Fewer links mean fewer chances to waste time, energy, and concrete.
Easy Access
Some areas can be awkward to access and far away from the roadside. A concrete pump can easily overcome these issues by using lines to deliver the concrete over a long distance. The boom can also be used to deliver the concrete in an elevated position, such as over a house or other tall structures blocking the way. Whether it's around a corner, through an alleyway, or even upstairs, concrete pumps can deliver your concrete exactly where you need it to be.
We deliver the used equipment in good condition, the price as follows: FOB XXX,000$
HIMALAYA is a professional supplier of all brands of used and remanufactured boom pumps in China, such as SANY, ZOOMLION, Schwing, CIFA and Putzmeister, the products are in good condition and are ready for sale, Welcome to get price and quotation from us or check the products condition on site.
Honesty is the LOWEST requirement of our company and our people.
