Concrete Boom Truck

Concrete boom truck

Features:

● X-shaped outriggers, the outriggers are easy to stretch, and occupy a small area.

● Intelligent 6RZ patented technology, the boom opening height is reduced by 6%, while the actual pumping height is increased by 15%, and the pumping range is increased by 20%;

● High-efficiency and large-displacement technology, through the scientific matching of pumping system, boom length and chassis, the maximum pumping volume is 180m3/h, fuel consumption is reduced, and life is increased.

● The boom has active vibration reduction technology, and the boom vibration is small during construction to ensure construction safety.

● Pump truck with rollover protection control( RPC) technology.

●  Very good condition.



Specifications and status:



Item	Specification	remarks
Brand	ZOOMLION	Big brand
Model	ZLJ5339THB	reliable and popular model
Chassis	Mercedez-Benz Actros 4141	reliable,imported from Sweden;
Drive Form	6X4
wheelbase(mm)	1350+4500
Engine	OM501LA.III/17
Displacement(L)	12
Power(HP)	300kw(409HP)
Max. torque(Nm/(r/min))	2000
Emission level	Euro 3
Gearbox	MT
Tyers	12R22.5
Max. Veitical reach(m)	48.6
Horizontal reach(m)	43.6
Number of boom	6(X-49-6RZ)
Main oil pump	Rexroth	double main oil pump:Germany Rexroth
Output (High/Low-pressure)(m3/h)	180/120
Pressure (High/Low-pressure)(Mpa)	12/8.3
Supporting leg(Shape)	X
Gross Vehicle Weight(KG)	33000
Net Weight(KG)	32870
Dimensions(mm*mm*mm)	12020*2500*4000
Others		Refurbished,some pipelines new , hydraulic oil is in good condition, all functions work fine. Don't need additional cost































































































We supply all brands of Concrete boom trucks in China, such as SANY,ZOOMLION,Schwing and Putzmeister, the products with good condition are ready for sales, welcome to get price and quotation from us or check the product condition on site.



the original status before refurbishment:





The list of repair,maintenance and refurbishment to equipment:

	The list of repair,maintenance and remanufacture to ZOOMLION concrete pump 49m with Mercedes-Benz
No.	Category	Item	Content	Brand	Current status
1	upper-body	Repalce the reducer oil and transfer case oil	replacement	SANY	works fine
2		The main oil pump speed does not display, the fault is solved	Repair and replacement	high quality	works fine
3		Replace 2 water tank proximity switches	replacement	IFM	works fine

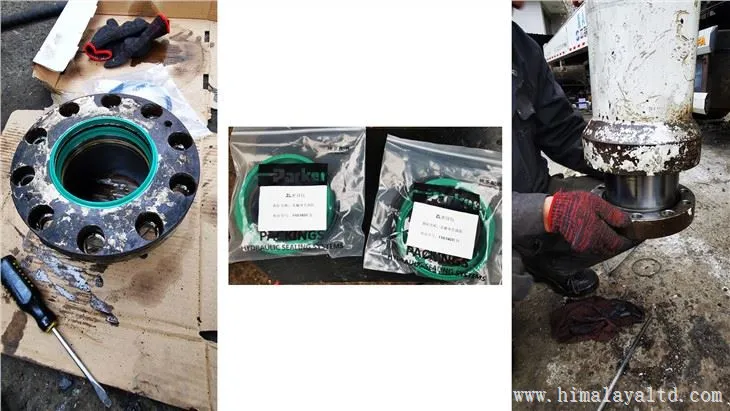

4		Seals (Seal of lower support cylinders of outrigger*3 units Seal of deployment cylinder of right rear outrigger*1 unit Sealing of the oil cylinder of the 6th boom*1 unit)	replacement	SKF	works fine
5		Replacement of pneumatic lubricating oil machine (automatic lubrication)		SANY	works fine
6		Replace fan, clean radiator (bodywork cooling system)		SANY	works fine
7		Hopper Maintenance	The condition is very good, not replaced, spare parts are provided free of charge (big end and small end bearings, seals, wear sleeves, stirring seals, stirring bearings)	high quality	works fine
8		Replacement glasses plate + cutting ring	The condition is very good, not replaced, spare parts are provided for free	high quality	works fine
9		repalce the concrete piston	replacement	high quality	works fine
10		Replacing the upper wall and protective cover of the hopper	replacement		works fine
11		replacing 2 water level gauges for the outriggers	replacement	high quality	works fine
12		Replacing the stairs for the platform	replacement		works fine
13		providing 4 outrigger pads	Installation	high quality	works fine
14		Replacing the Boom's Bumper Plate (Full Set)	Installation	high quality	works fine
15		GPS permanently unlocked	repair		works fine

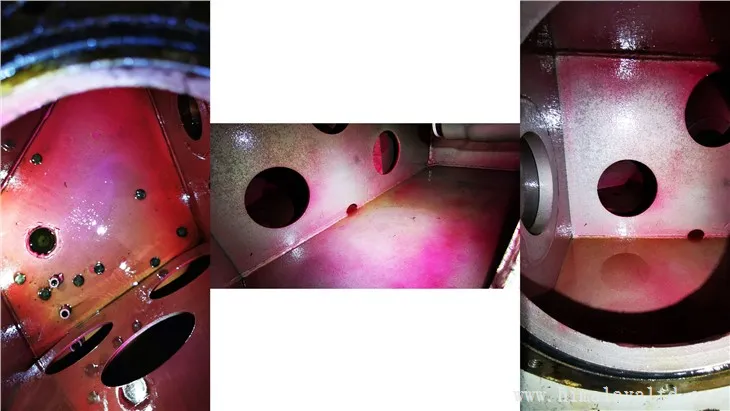

16		Cleaning the hydraulic oil tank	cleaning		works fine
17		Replace hydraulic oil filter element (full set, 7 pieces)	Installation	high quality	works fine
18		filter hydraulic oil	Added 6 buckets	SANY	normal color
19		Replace 1 pressure gauge	Installation	high quality	works fine
20		replace water gun and water pipe,replace water pump filter	replacement	high quality	works fine

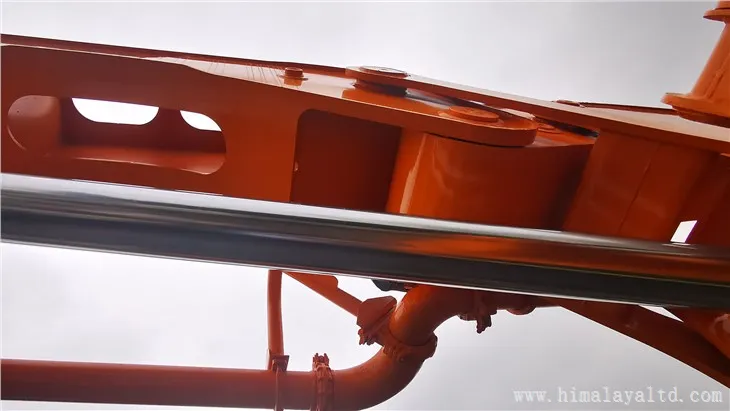

21		Wrap the tubing on the boom	Installation		works fine
22		Install the tailpipe	Installation	high quality	works fine

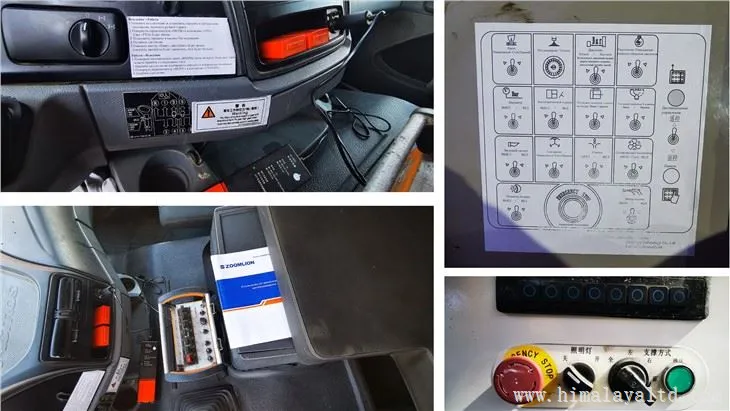

23		Replacing the protective cover of the auxiliary control box	Installation	high quality	works fine
24		Pumping water test via throttle valve	test		works fine
25		Other small projects	repaired		works fine
26		clean the remote control	Inspection		works fine
27		Remote control battery charger	replacement	high quality	works fine
28		Butter the total equipment	Finished		works fine
29	Chassis	Engine maintenance and replacement of engine oil, oil filter, diesel filter, oil-water separator	maintenance, replacement	original	works fine
30		antifreeze	replacement	big brand	works fine
31		Transmission oil and filter element	replacement	big brand	works fine
32		Overhaul the engine	Finished		works fine
33		rear axle oil	replacement	big brand	works fine
34		wheel oil	replacement	high quality	works fine
35		Replacing taillights and taillight mounts	replacement		works fine
36		Replacement rear mirrors (two)	replacement		works fine

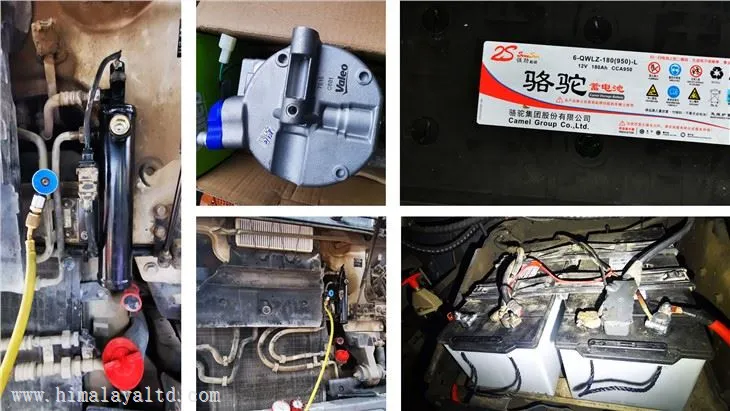

37		Battery(180A, 2S,winter solution)	replacement	big brand	works fine
38		Battery main switch	replacement		works fine
39		air conditioner	Inspection, replacement of brand compressors, drying bottles, maintenance	Valeo	works fine
43		Check clutch disc remaining amount	The condition is very good, not replaced		works fine
44		check the brakes			works fine

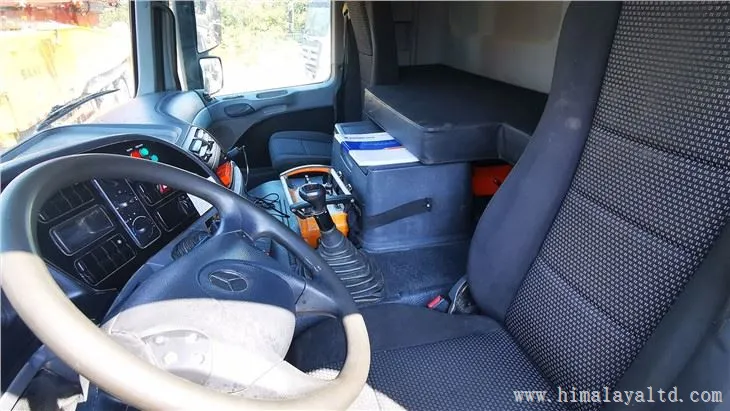

45		Cab Grooming	cleaning, beauty		works fine
46		replace wipers	replacement		works fine
47		Chassis cleaning			clean
48		Total new painting			beautiful
49		Customs clearance document
50		Translate the operating instructions into Russian or English

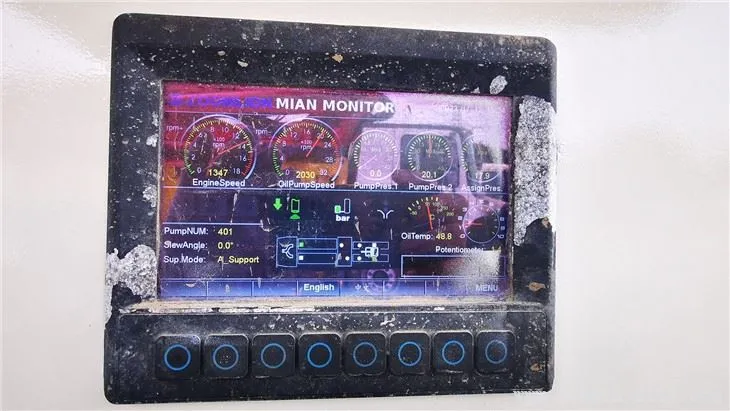

to ensure that the machine is working normally, the machine is without malfunction on the main parts, without electrical error in the setting screen, without drop of oil---This is a very high standard to the used equipment
