Boom Concrete Pump
Intelligent 5RZ boom, lager pumping range.
X-shaped outriggers,more suitable for a small area.
Boom intelligent damping technology.
good status and low price.
Boom concrete pump
Features:
● Compact in design, 47m pump mounted on a 3-axle chassis.
● Intelligent 5RZ boom, larger pumping range.
● X-shaped outriggers,more suitable for a small area.
● Boom intelligent damping technology: The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably,reliably and safely.
● Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
● Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
● Remote control.
● good status,all functions work well; as the following video:
Specifications and status:
| Item | remarks | |
| Brand | ZOOMLION | Big brand |
| Model | ZLJ5336THB | reliable and popular model |
| Chassis | Mercedez-Benz Actros 4141 | reliable,imported from Germany; |
| Drive Form | 6X4 | 3 axles |
| wheelbase(mm) | 1350+4500 | |
| Engine | OM501LA.III/17 | |
| Displacement(L) | 12 | |
| Power(HP) | 300kw(409HP) | |
| Max. torque(Nm/(r/min)) | 2000 | |
| Emission level | Euro 3 | |
| Max. Veitical reach(m) | 47 | |
| Horizontal reach(m) | 42.7 | |
| Number of boom | 5 | |
| Main oil pump | Rexroth | double main oil pump Germany Rexroth |
| Output (High/Low-pressure)(m3/h) | 180 | |
| Pressure (High/Low-pressure)(Mpa) | 12 | |
| Supporting leg(Shape) | X | |
| Gross Vehicle Weight(KG) | 33000 | |
| Dimensions(mm*mm*mm) | 12060*2500*4000 | |
| Others | all main functions are working very well, the pressure of the main system is very good: 36MPa + completely new hydraulic oil + 90% new concrete pipes +new plate for glasses, +new cutting ring + the bunker has already been fully served and all parts have been replaced + already fully served engine ,chassis, boom and pump system+have already replaced the control cabinet and harnesses, repalced the front tyres, repainted, unlock GPS, clean the cabinet | |
| Date of production | 2011.05 | |
| Mileage(Km) | 60,270 | original data |
| Status ★★--bad ★★★--OK ★★★★--good ★★★★★--Outstanding | ★★★★ | good, see as pictures |
| Language of Opertating System | Chinese-English | |
| Location | Сhangsha, China | SANY and Zoomlion factories locate in Our Changsha City, we have all the resource and advantage:remanufacturing factory+all spare parts+engineers+technology |






FCA Changsha,China XX,000$
FOB Shanghai, China XX,000$
DAP Khorgos, China XX,000$
We supply ZOOMLION,SANY,Schwing and Putzmeister used boom concrete pumps in China,from 37m to 75m, the products are of good condition,ready for sales by owner, welcome to get price and commercial quotation from us or check the product condition on site.
A few companies write false information about the used equipment on the website to increase the attractiveness, for example: production year, mileage, working hours, decorating the equipment condition.
Equipment is a complex machine, there are many technologies of mechanics, hydraulics and electronics. If you buy low-quality used equipment, although the price was low, you will spend more money and time for repairs. Then it's too late to regret!
Honesty is the LOWEST requirement of our company and our people.

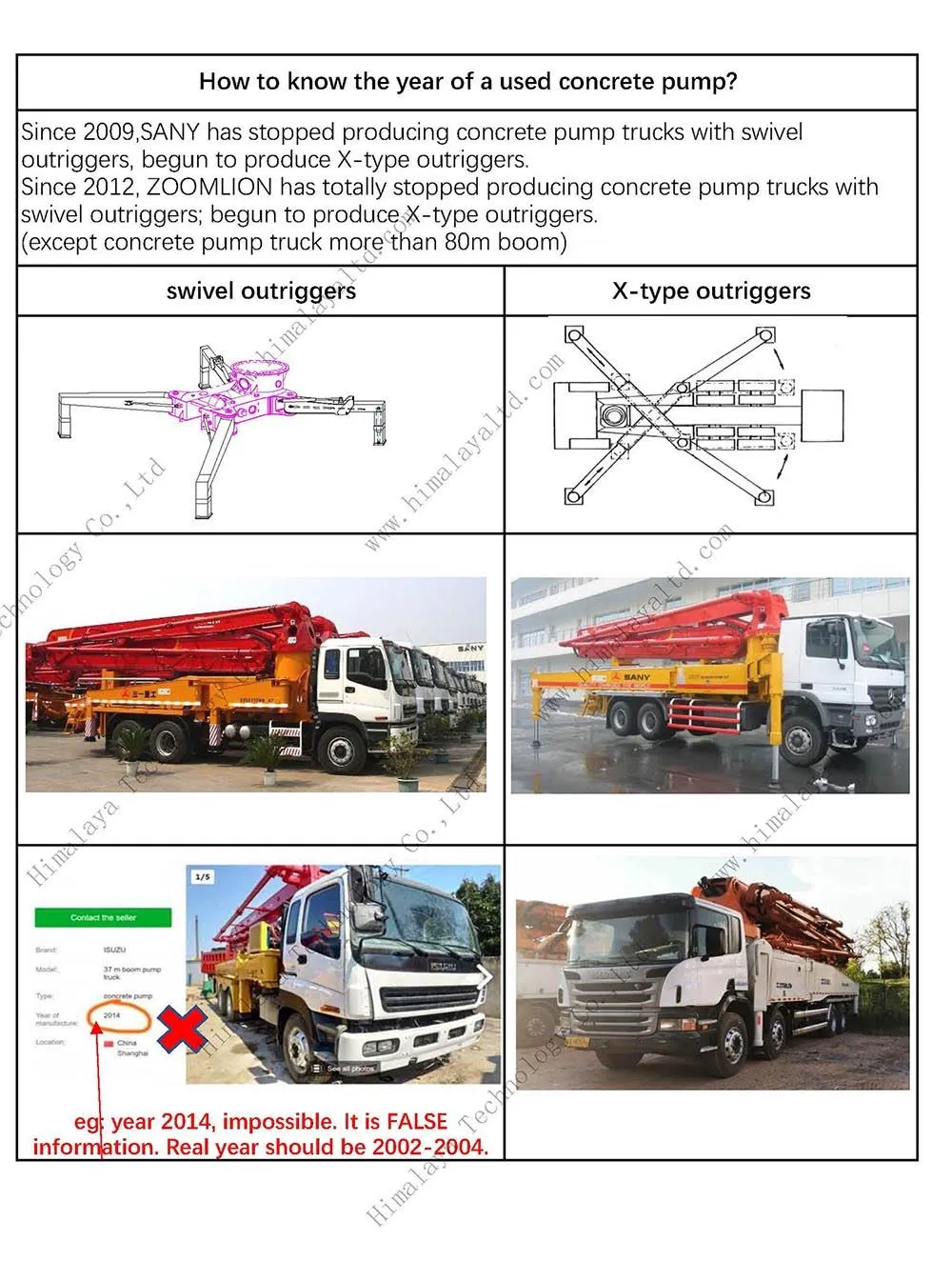

How to know the year of a used concrete pump?
Since 2009,SANY has stopped producing concrete pump trucks with swivel outriggers, begun to produce X-type outriggers.
Since 2012, ZOOMLION has totally stopped producing concrete pump trucks with swivel outriggers; begun to produce X-type outriggers.
