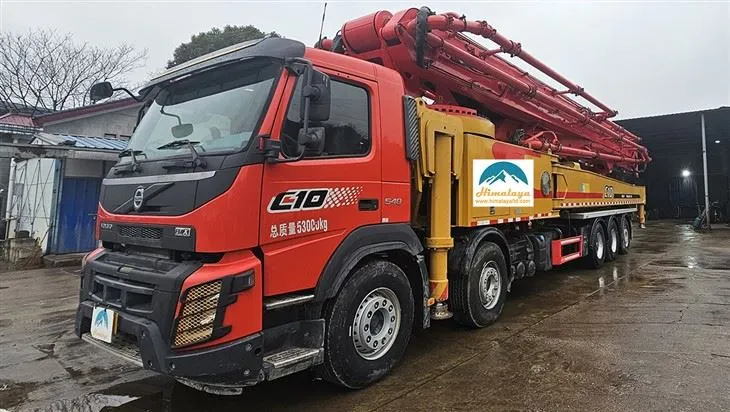

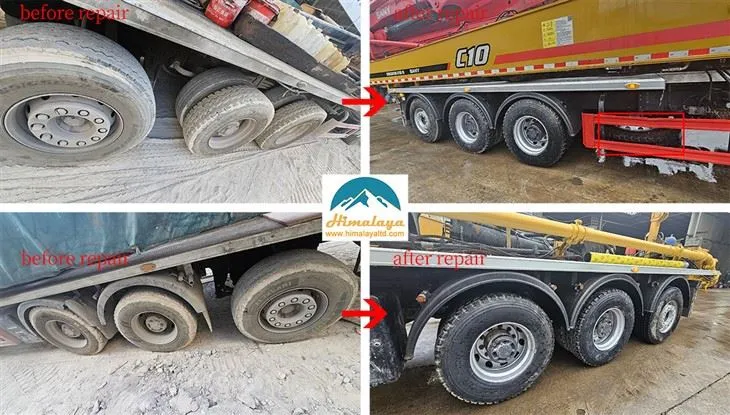

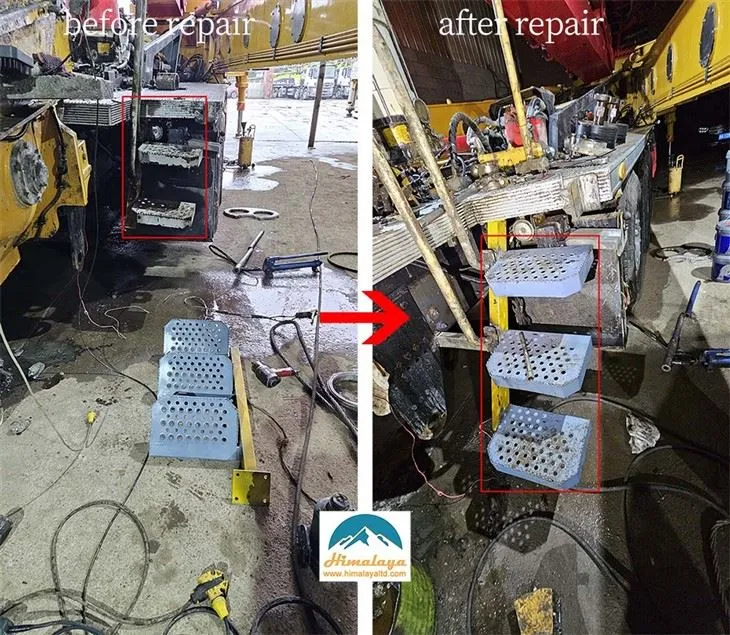

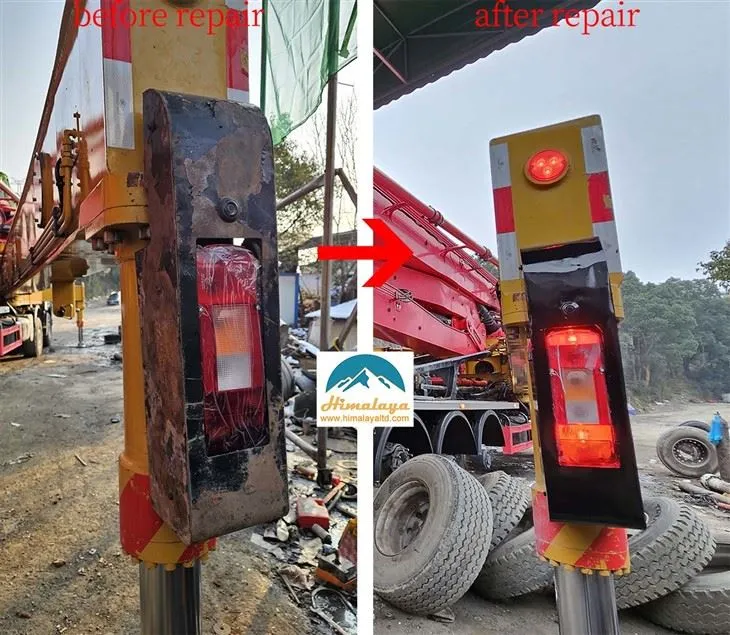

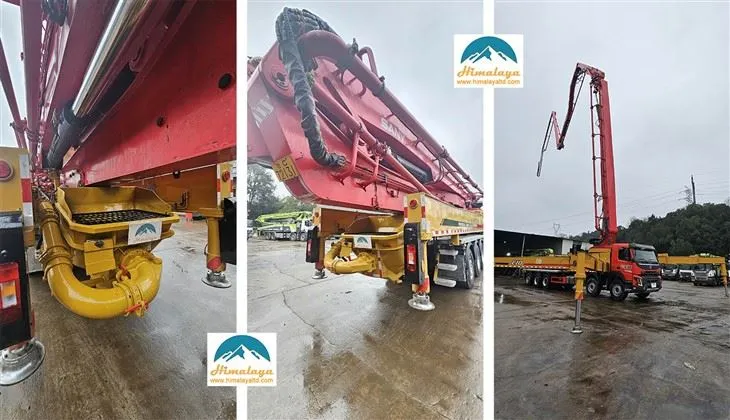

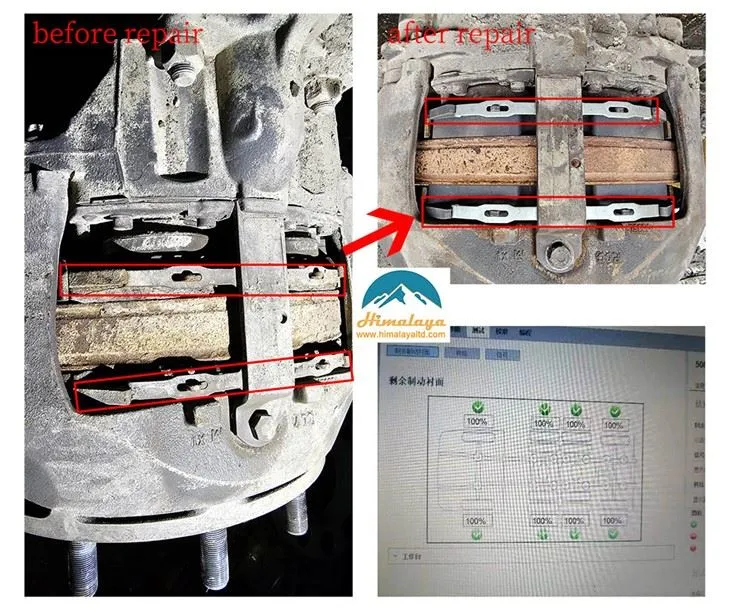

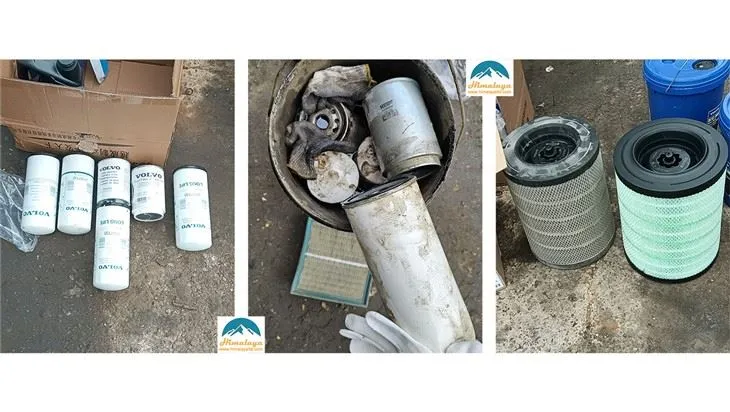

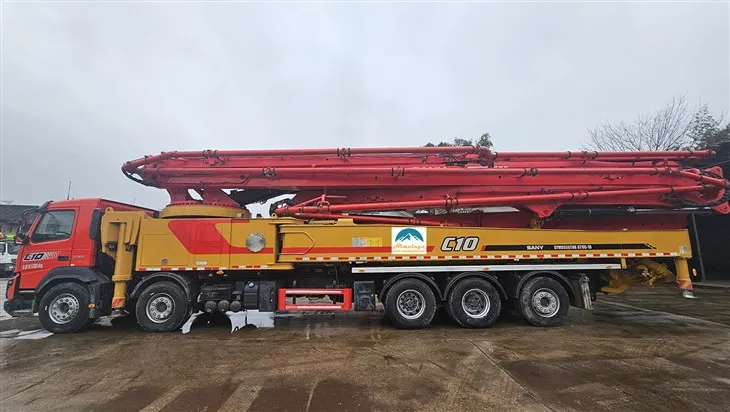

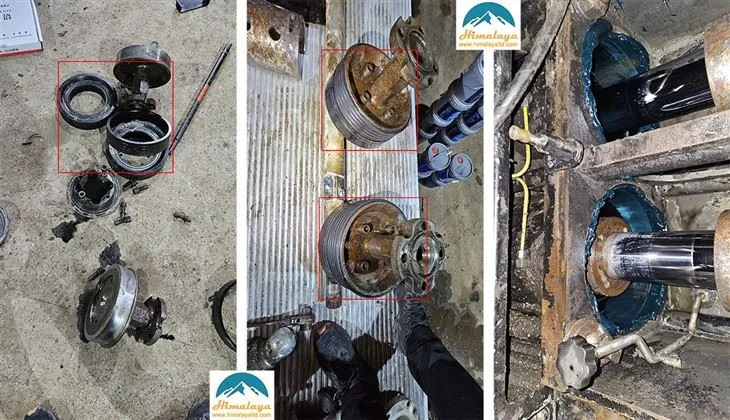

SANY used concrete pump,SYM5538THB, 67m,2021year, with Volvo Chassis, Euro 5, 6RZ boom, original equipment, with C10 system, high configuration, very good working condition, all functions work well, was well serviced, replaced all tires and other neccessary spareparts.
Don't need to worry about its condition, the equipment is like new.
System pressure is very good, 31Mpa(max).
NO oil leak at any spare parts.
| Item | Specification | remarks |
| Brand | SANY | No.1 on the concrete pumps in the world |
| Model | SYM5538THB | reliable and popular model |
| Chassis | VOLVO FM540 104R B |
reliable,imported from Sweden; |
| Drive Form | 10X4 | |
| wheelbase(mm) | 1995+5205+1370+1480 | |
| Engine | D13C540S EU5 | |
| Displacement(L) | 12.777 | |
| Power(HP) | 540(397KW) | |
| Max. torque(Nm/(r/min)) | 2650 | |
| Emission level | Euro 5 | |
| Gearbox | AMT(Automated manual transmission) | |
| Tyers |
12(385/65R22.5*4+315/ 80R22.5*8+425/65R22.5*2) |
|
| Max. Veitical reach(m) | 66.2 | |
| Horizontal reach(m) | 61.1 | |
| Number of boom | 6(X-67-6RZ) | |
| Main oil pump | Rexroth | double main oil pump:Germany Rexroth |
| Output (High/Low-pressure)(m3/h) | 180 | |
| Pressure (High/Low-pressure)(Mpa) | 13 | |
| Supporting leg(Shape) | X | |
| Gross Vehicle Weight(KG) | 53000 | |
| Net Weight(KG) | 52870 | |
| Dimensions(mm*mm*mm) | 16600*2500*3900 | |
| Others | Original equipment + totally new tires, all pipelines and hydraulic oil are in good condition, all functions work fine. | |
| Date of production | 2021 | |
| Mileage(Km) | ||
| Working hours of pump system(h) | 850.6 | |
| Pumping volume(m3) | 67,997 | |
| Status ★★--bad ★★★--OK ★★★★--good ★★★★★--Outstanding |
★★★★★ | outstanding, see as pictures and video |
| Language of Opertating System | На ваш язык |
Multilanguage:Chinese,English,Russia,Arabic, French,Spanish, German,and Turkish language |
| Location | Сhangsha, China | SANY and Zoomlion factories locate in Our Changsha City, we have all the resource and advantage:remanufacturing factory+all spare parts+engineers+technology |
The status of the pump as followoing:
The detailed techinical specifications as following:
|
Vertical height of the boom |
66.2m |
||
|
Horizontal length of boom |
61.1m |
||
|
Vertical depth of the boom |
44m |
||
|
Minimum deployment height |
16.8m |
||
|
Length of the first section of arm |
13735mm |
||
|
Angle of the first arm |
89° |
||
|
Length of the second section of arm |
10615mm |
||
|
Angle of second section of arm |
180° |
||
|
Arm length of the third section |
10225mm |
||
|
Angle of the third section of arm |
180° |
||
|
Arm length of the fourth section |
13320mm |
||
|
Angle of the fourth arm |
230° |
||
|
Arm length of the fifth section |
8210mm |
||
|
Angle of the fifth arm |
180° |
||
|
Arm length of the sixth section |
5550mm |
||
|
Angle of the sixth section of arm |
100° |
||
|
Turntable rotation angle |
±360 º |
||
|
The seventh arm |
\mm |
||
|
Spread width of front outrigger |
12444mm |
||
|
Section VII arm rotation angle |
\° |
||
|
Expanded width of rear leg |
15102mm |
||
|
Pumping system parameters |
|||
|
Low pressure of theoretical concrete displacement |
180m³/h |
||
|
High pressure of theoretical discharge of concrete |
120m³/h |
||
|
Theoretical pumping pressure low pressure |
8.3Mpa |
||
|
Theoretical pumping pressure High pressure |
12Mpa |
||
|
Theoretical pumping times Low pressure |
29 times/Minute |
||
|
Theoretical pumping times High pressure |
19 times/Minute |
||
|
Inner diameter of delivery cylinder |
260mm |
||
|
Transfer cylinder stroke |
1900mm |
||
|
Hydraulic system |
Open type |
||
|
System oil pressure |
32Mpa |
||
|
Fuel tank capacity |
880L |
||
|
Water tank volume |
700L |
||
|
Delivery pipe diameter |
125mm |
||
|
End hose length |
3m |
||
|
Pipe diameter of end hose |
125mm |
The products with good condition are ready for sales, welcome to get price and quotation from us or check the products condition on site.
