Concrete Pumping Equipment
Original paint (never repainted); original pipelines;
All systems work well(engine, gearbox, main oil pumps, booms, automatic lubrication);
No fault codes on the cabin or pump screens.
The Mercedes-Benz engine runs smoothly and powerfully, and every component (from hoses to seals) is leak-free. The hopper cover has been replaced, and due to very few operating hours, hopper screen is only slightly worn.
This is one of the best used concrete pump trucks (from 56m to 67m) in China.
Concrete Pumping Equipment
Features:

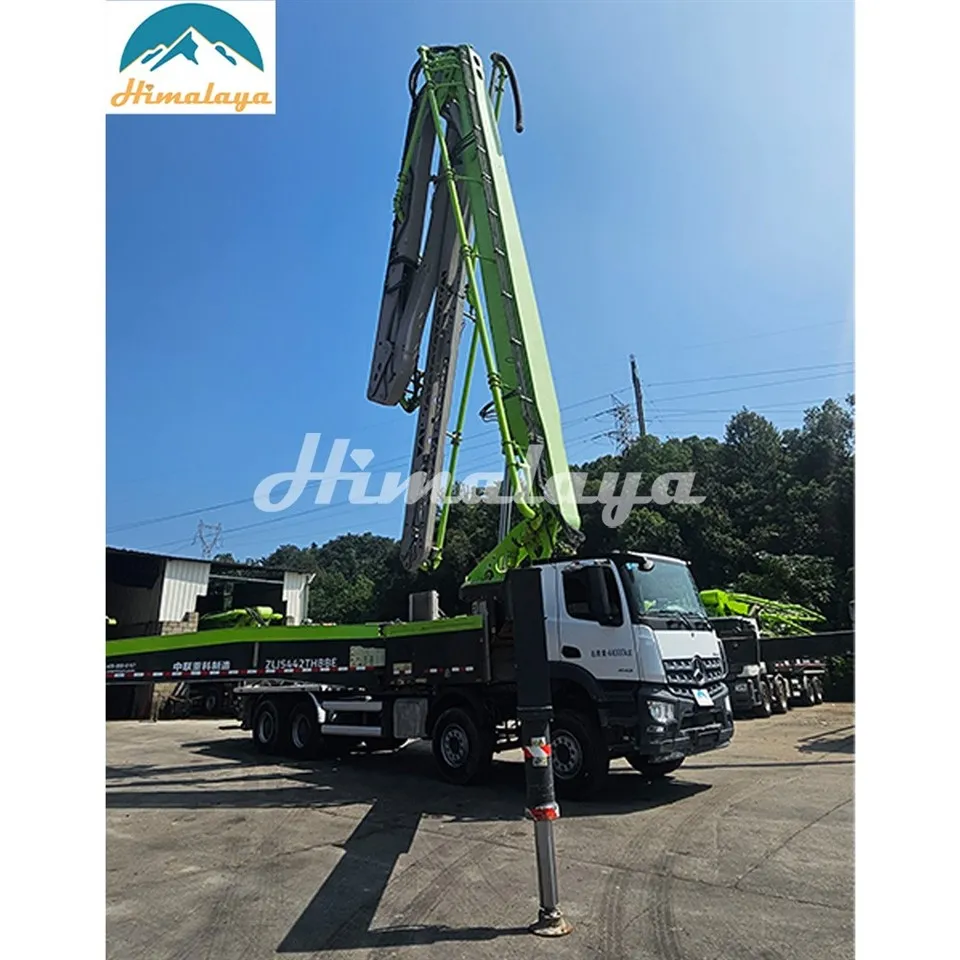

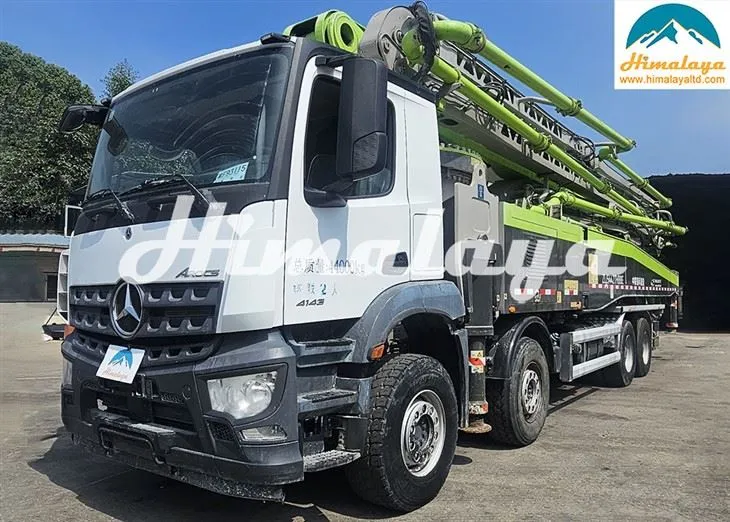

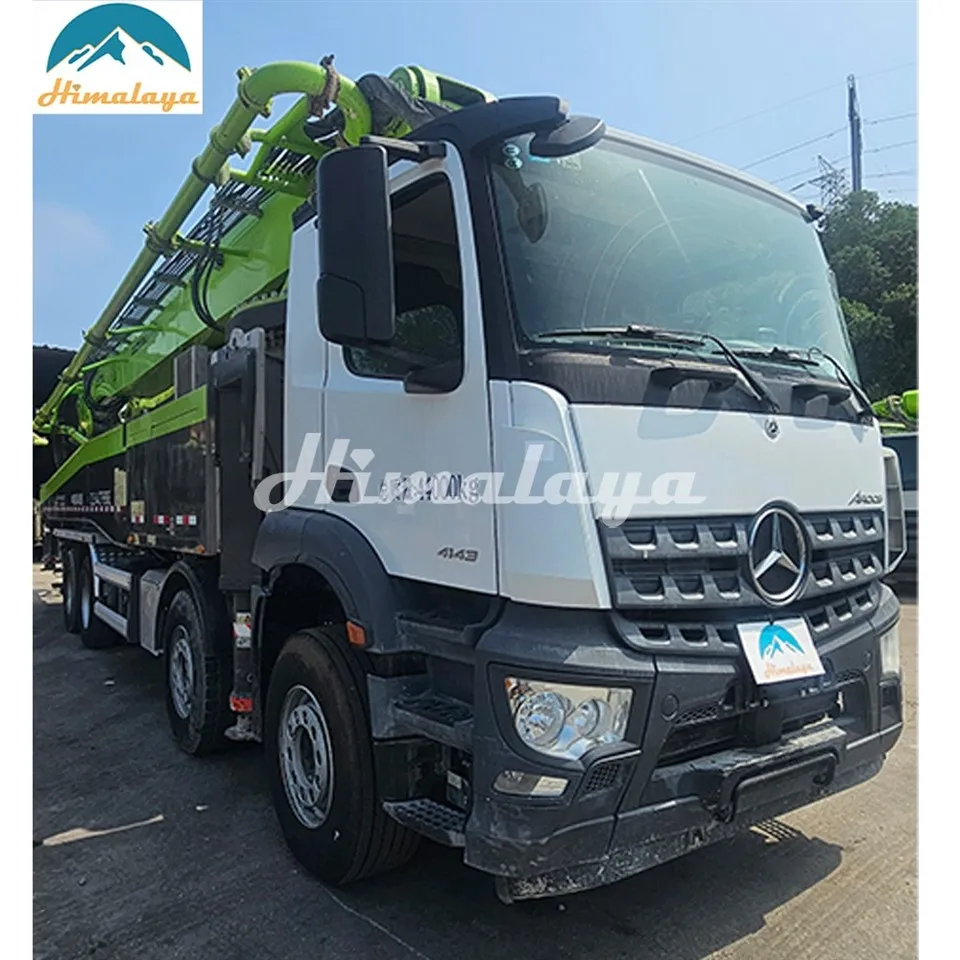

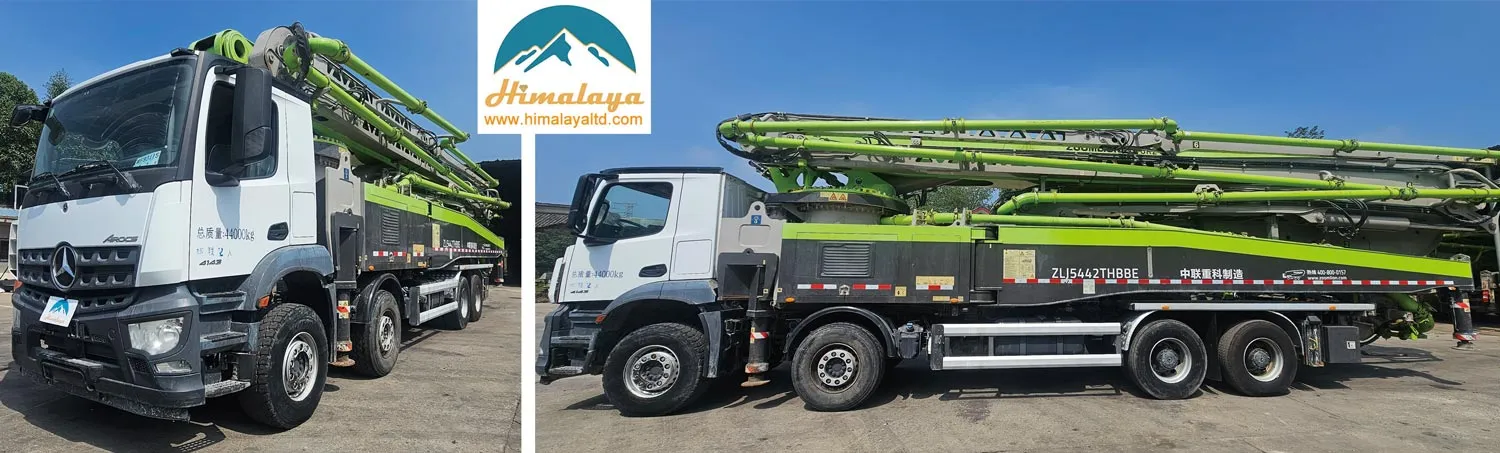

ZLJ5442THBBE is a 59m ZOOMLION concrete pumping equipment based on a four-axles Mercedes-Benz chassis.
Faster: Fast pumping speed, maximum displacement 180m³/h. Large material spreading height and wide material spreading range make material spreading more efficient.
Energy Saving: Self-adaptive variable power distribution control technology.
Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely.
Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%.
This concrete pumping equipment has the following advantages：
1, Original machine with very low working hours: 512h
Original paint (never repainted); original pipelines;
All systems work well(engine, gearbox, main oil pumps, booms, automatic lubrication);

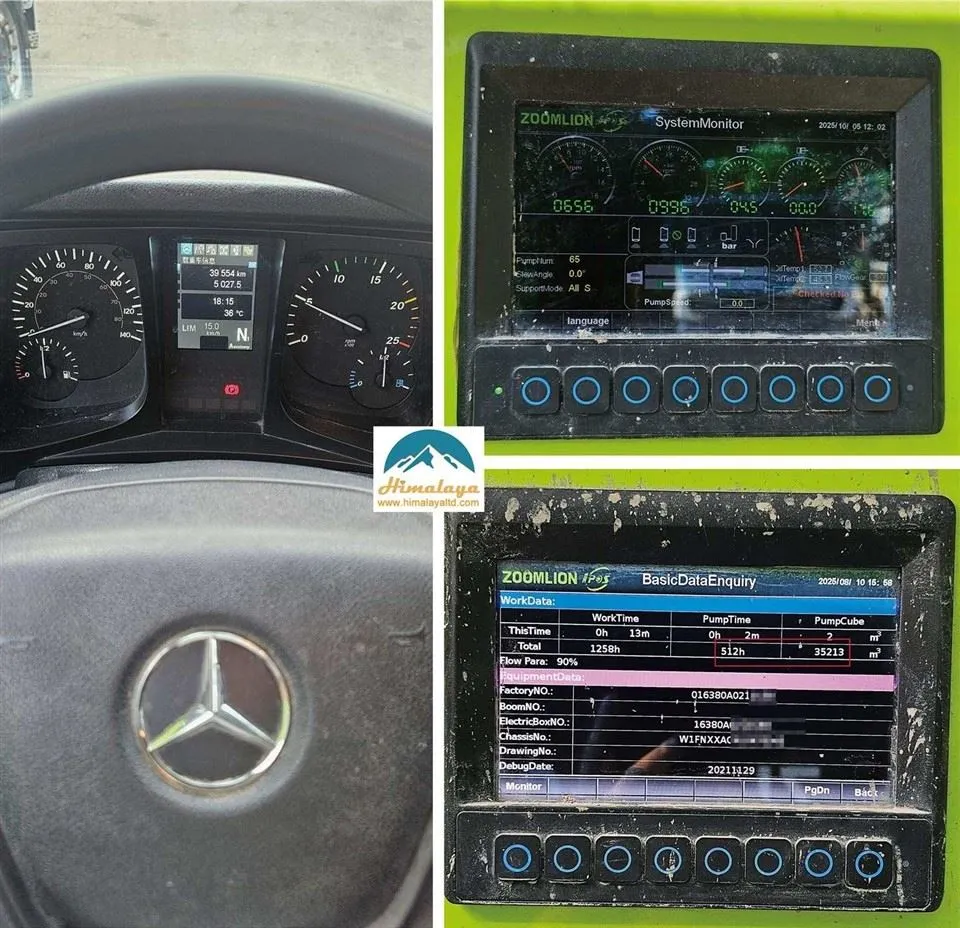

No fault codes on the cabin or pump screens.
The Mercedes-Benz engine runs smoothly and powerfully, and every component (from hoses to seals) is leak-free. The hopper cover has been replaced, and due to very few operating hours, hopper screen is only slightly worn.
This is one of the best used concrete pump trucks (from 56m to 67m) in China.
2, Powerful working capacity: A high-efficiency, low-emission Mercedes-Benz engine delivers robust power, ensuring consistent and fast pumping even for high-volume projects. The pump truck's transmission system incorporates an advanced hydraulic system with high pumping pressure and large flow, suitable for various engineering operations.

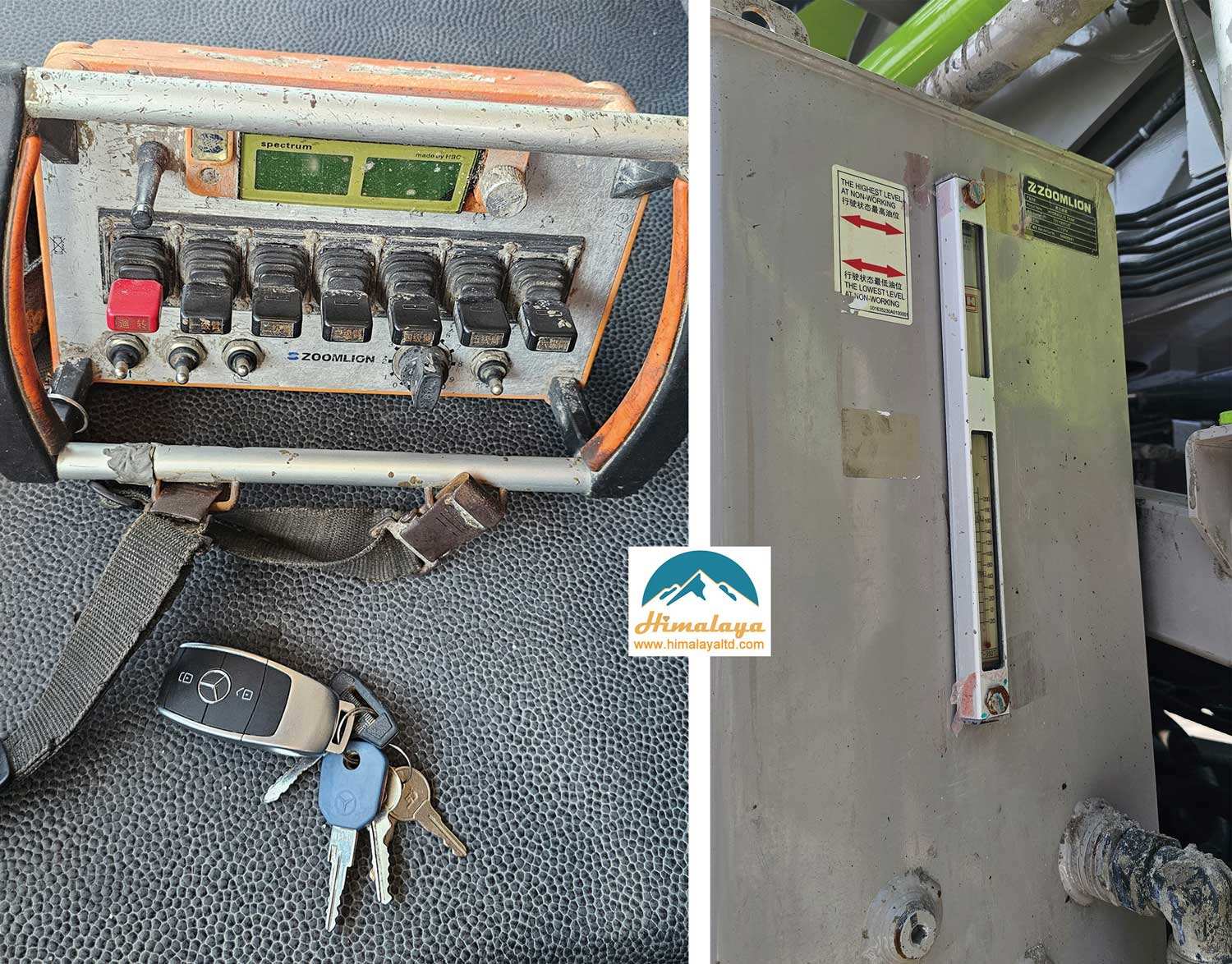

3, Flexible Operation and Maximum Safety: Flexibility is one of its core advantages. Advanced remote control technology enables operators to manage pumping tasks from a safe distance, reducing risks and improving efficiency. The pump truck is also equipped with a 360-degree rotating cockpit, which allows easy adjustment of pumping direction to adapt to various work scenarios.
4, High degree of automation: A major highlight of this pump truck is its advanced automation technology. The intelligent electronic control system automatically adjusts pumping pressure and speed, significantly improving operational accuracy and stability. Furthermore, the pump truck is equipped with an intelligent diagnostic system that monitors and diagnoses equipment operating status in real time, issuing alerts before potential problems develop into failures.
5, Two independent hydraulic oil tanks:
This reduces hydraulic oil usage by 30%, doubles hydraulic oil life, and saves $2,000 in annual operating costs.
More importantly, the boom and outrigger hydraulic oil remains clean and free of impurities, protecting the seals of the boom multi-way valve, boom counterbalance valve, and boom cylinders, ensuring long-term operation without seizure and significantly reducing failure rates.
Specifications：
| Item | Specification | remarks |
| Brand | Zoomlion | Big brand |
| Model | ZLJ5442THBBE | reliable and popular model |
| Chassis | Mercedes-Benz | reliable,imported from Germany |
| Arocs 4143 8X4 | ||
| Drive Form | 8X4 | |
| Engine | OM470LA. 5-54 | |
| Power(HP) | 315kW(422HP) | |
| Max. torque(Nm/(r/min)) | 1600 | |
| Emission level | Euro 5 | |
| Max. Veitical reach(m) | 58.1 | |
| Max. Horizontal reach(m) | 52.9 | |
| Number of boom | 6(X-59-6RZ) | |
| Main oil pump | Rexroth | double main oil pump:Germany Rexroth |
| Output (High/Low-pressure)(m3/h) | 180/120 | |
| Pressure (High/Low-pressure)(Mpa) | 11 | |
| Supporting leg(Shape) | X | |
| Gross Vehicle Weight(KG) | 44,000 | |
| Net Weight(KG) | 43,870 | |
| Dimensions(mm*mm*mm) | 14690*2530*4000 | |
| Date of production | 2021.04 | |
| Mileage(Km) | 39,554 | |
| Working hours of pump system(h) | 512 | Worked very few, very good condition: it is one of the best used concrete pump trucks in China |
| Pumping volume(m³) | 35,213 | |
| Status ★★--bad ★★★--OK ★★★★--good ★★★★★--Outstanding |
★★★★★ | Outstanding See as pictures and video (Original machine, worked very little, Condition is excellent, all functions work perfectly; No fault code in the cabin and pump screen; The engine and pump voice is very smooth, there is no oil leak at any place.) |
| Language of Opertating System | Chinese,English | |
| Location | Changsha | We have all the resource and advantage:remanufacturing factory+all spare parts+engineers+technology |
Himalaya Technology Co., Ltd, a modern, comprehensive, and professional company, located in Changsha City, China, focuses on construction machinery, commercial vehicles, industrial machinery, and spare parts. It has an honest team of high efficiency in sourcing management, production management, quality control, and delivery fulfillment over 20 years.
We are the strategic partners of some big brands in China, have strong relationships with the factories, and can provide new equipment to meet customers' high demand for quality, reliability, and delivery time, "Good products, the better commercial terms".
On the used equipment, we try our best to supply the products without fault code on the dashboard, "We care not only about outer beauty, but also inner beauty", we put most of our energy and expenses into substantial and beneficial items, such as good original condition of the equipment, functionality, safety, and reliability.
