Sany Concrete Pump
Sany Concrete Pump

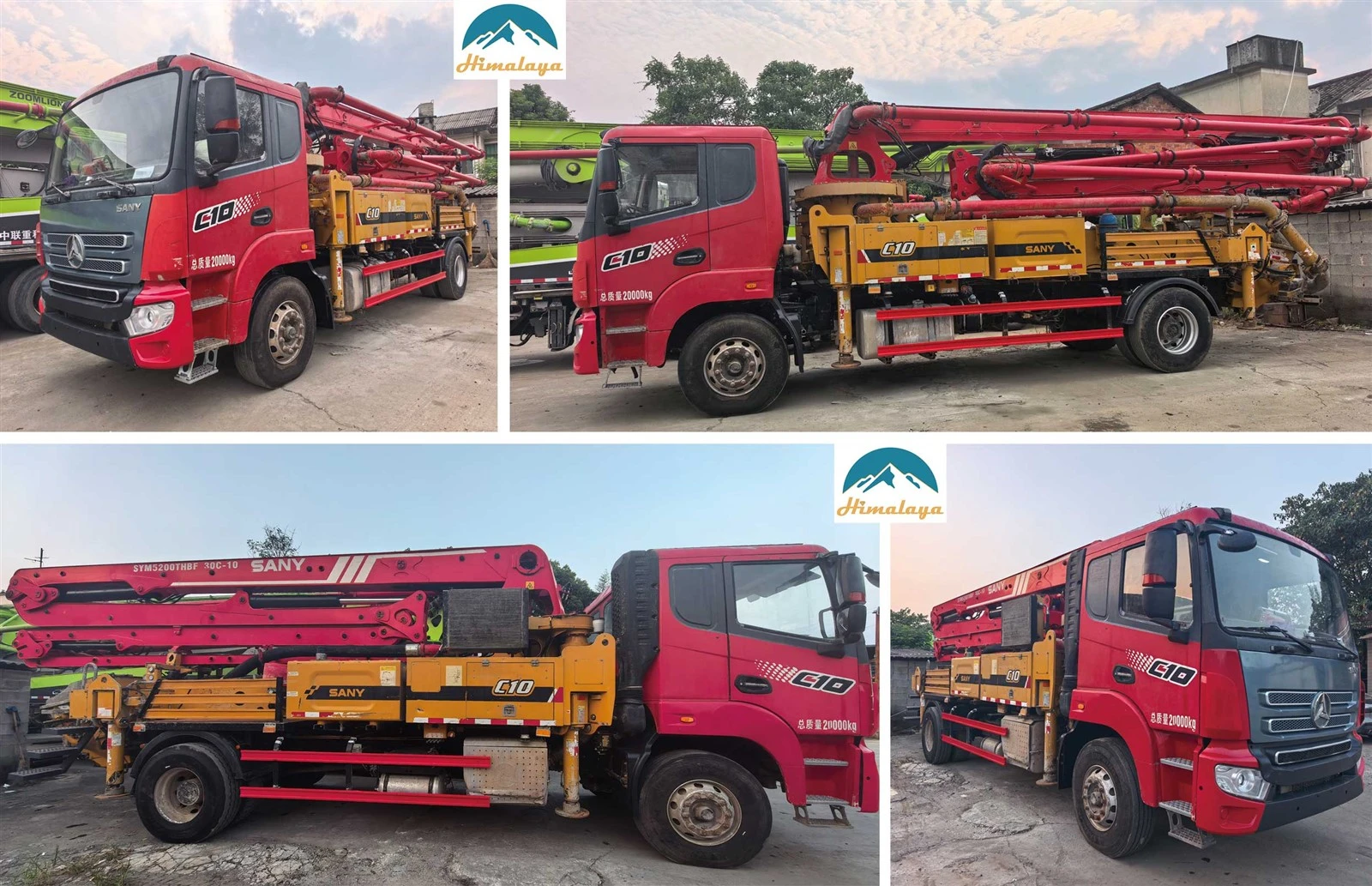

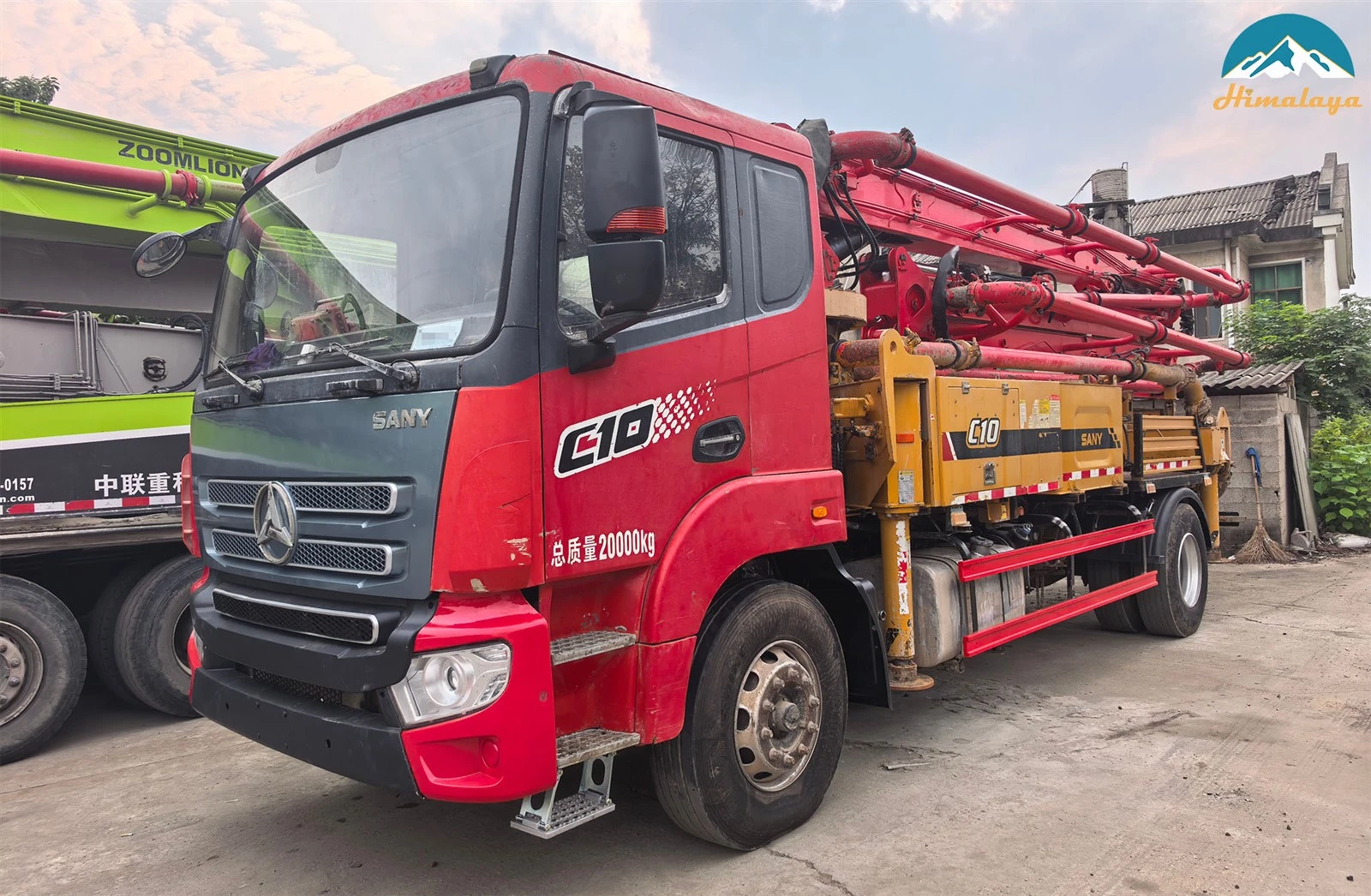

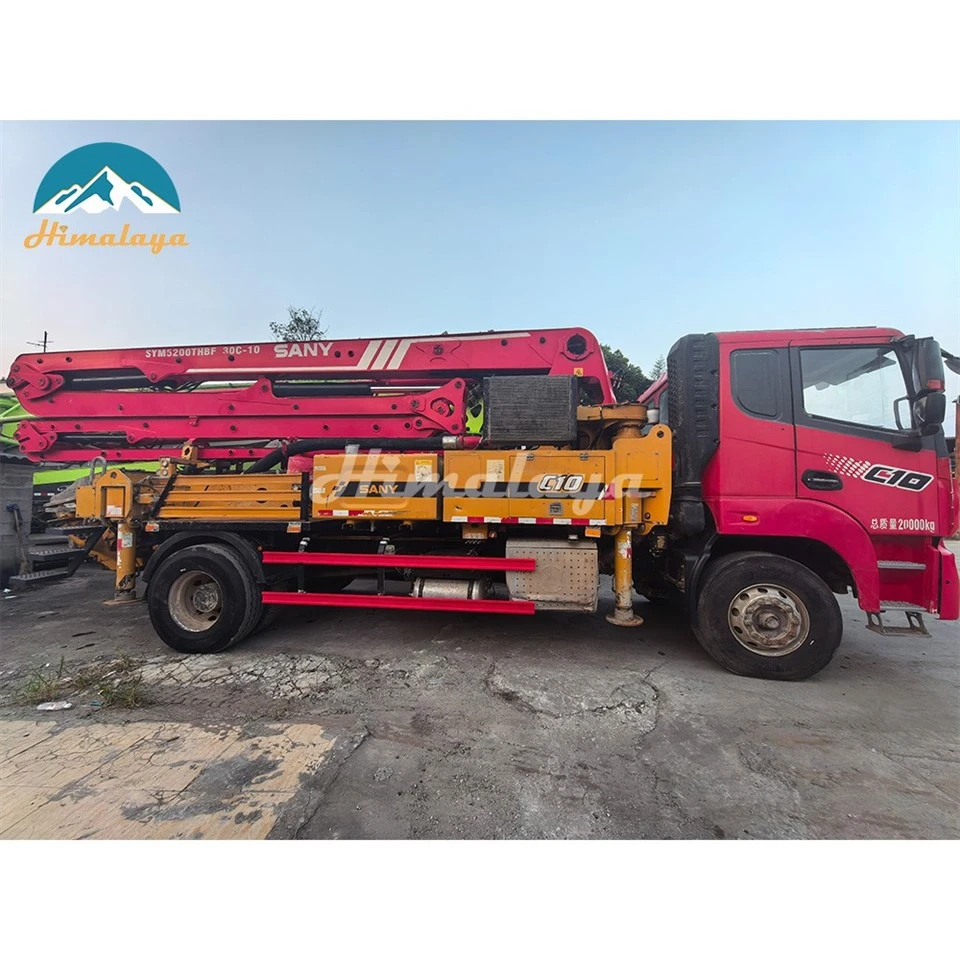

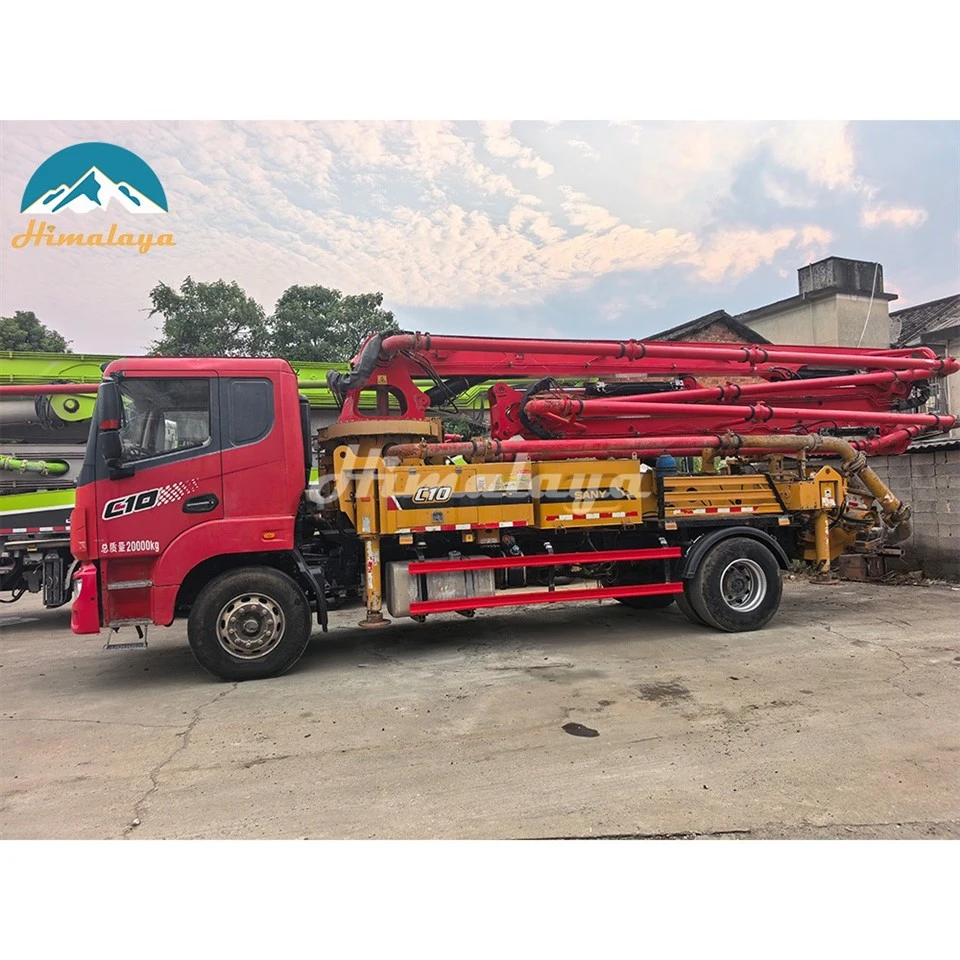

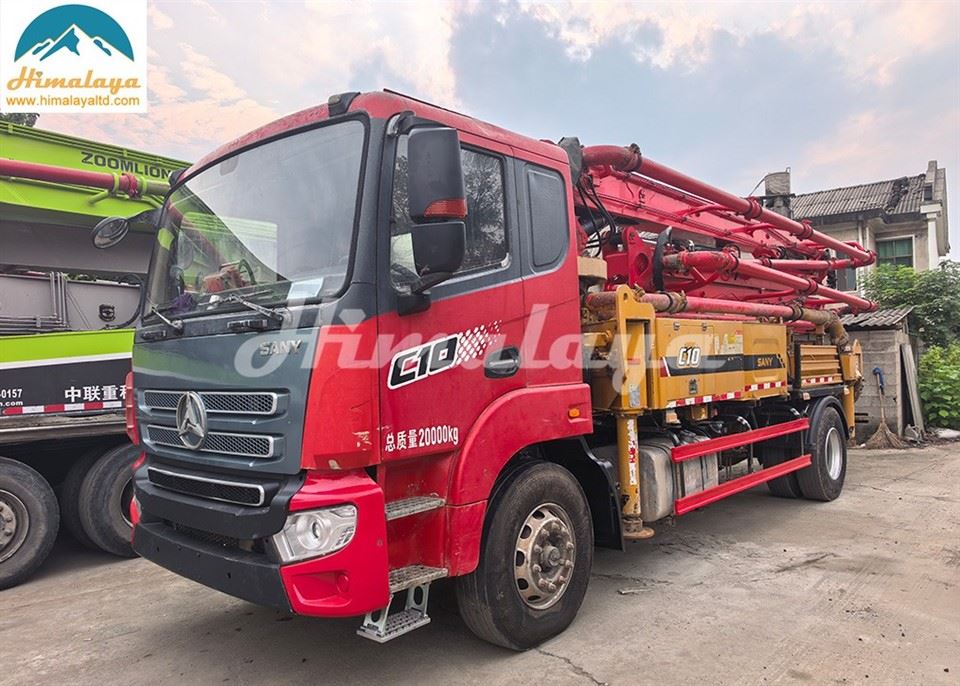

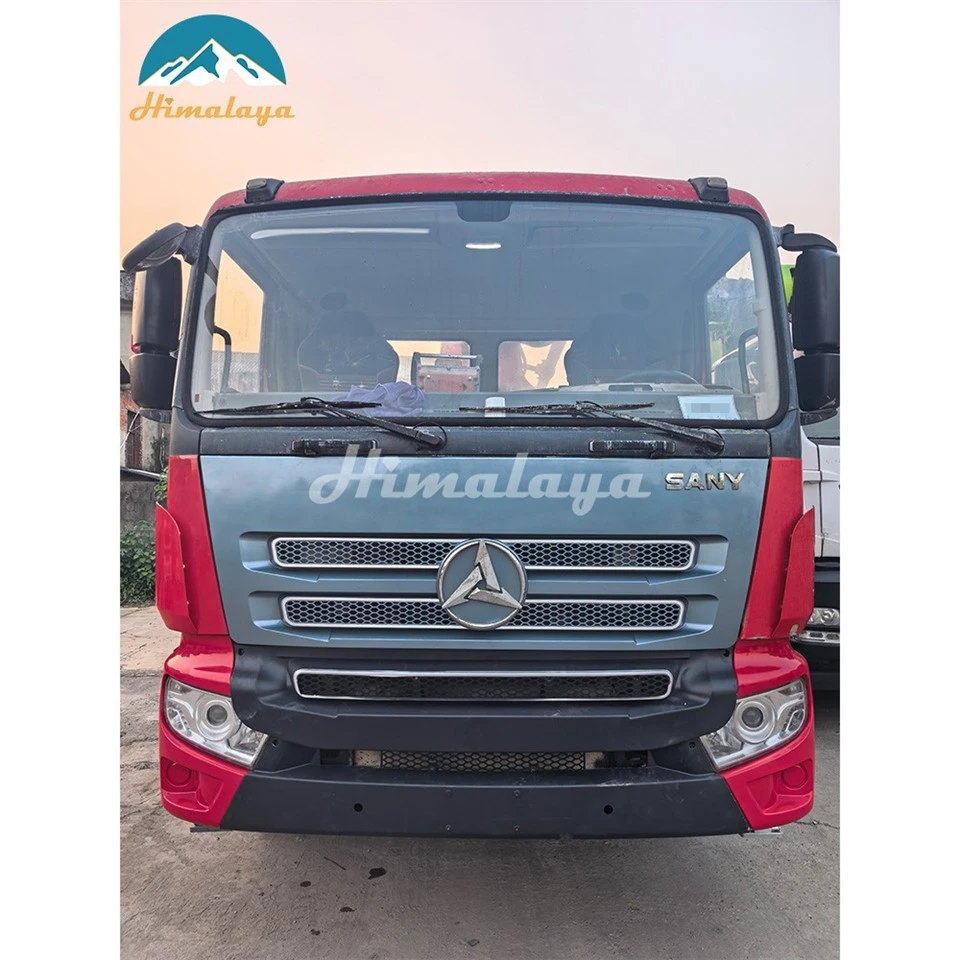

Used SANY Concrete Pump -- 31m
Original, 2023 year, SANY,31m,model SYM5200THBF 30C-10 mounted on SANY SYM5200THB1F chassis. Equipped with SANY D09C6-320E0 Engine (229 kW / Euro 6), 4-section flexible boom, C10 smart pumping system. Genuine low working condition: only 928 pumping hours, 48,389 m³ pumped volume, 20,020 km mileage. Clean, leak-free, tested, and in outstanding working condition, ready for global delivery.
Key Features & Advantages

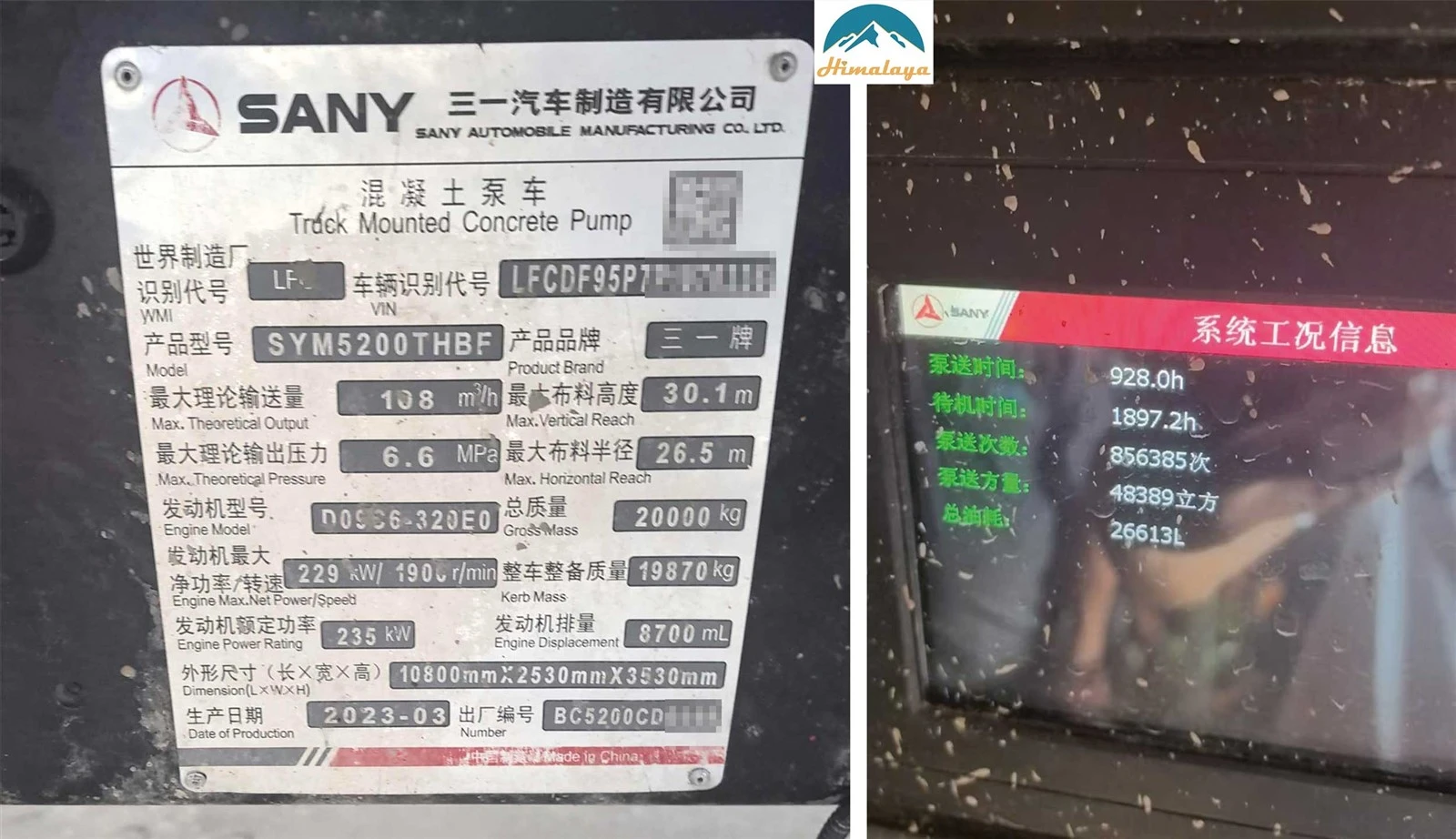

1 Near-New 2023 Equipment with Genuine Verified Data:
Production Date: March 2023 (2023-03).
Pumping Hours: Only 928.0 h (Standby time: 1897.2 h).
Total Pumping Volume: 48,389 m³ (Pumping cycles: 856,385 times).
Mileage: 20,020 km.
Genuine computer system data with no altered records.
2 Advanced SANY C10 Intelligent Pumping Technology:
High theoretical concrete displacement up to 108 m³/h with 6.6 MPa pumping pressure.
Large delivery cylinder (Φ230mm×1600mm) ensures smooth aggregate suction and high pumping efficiency.
Open-loop hydraulic system with 32 MPa system pressure ensures stable continuous operation and lower fuel consumption (recorded average fuel efficiency: 26,613 L total).
3 Compact 4-Section Flexible Boom & Compact Footprint:
Vertical reach of 30.1 m and horizontal reach of 26.5 m with 9.6 m minimum unfolding height, ideal for urban construction, residential housing, bridges, and confined job sites.
Compact outrigger spread (Front: 5.85 m, Rear: 5.0 m) allows flexible setup in narrow streets and tight spaces.
4 Reliable Chassis & High Emission Standard:
Heavy-duty SANY chassis with 8.7 L D09C6-320E0 engine (229 kW / 311 HP net power @ 1900 rpm), meeting Euro 6 emission standards.
Total gross weight of 20,000 kg with compact overall dimensions (10.8m×2.53m×3.53m), offering excellent maneuverability and high road speed (up to 90 km/h).
5 Strict Condition Verification & Zero Fault Codes:
Original paint, original hydraulic pipelines, and wear parts in good condition.

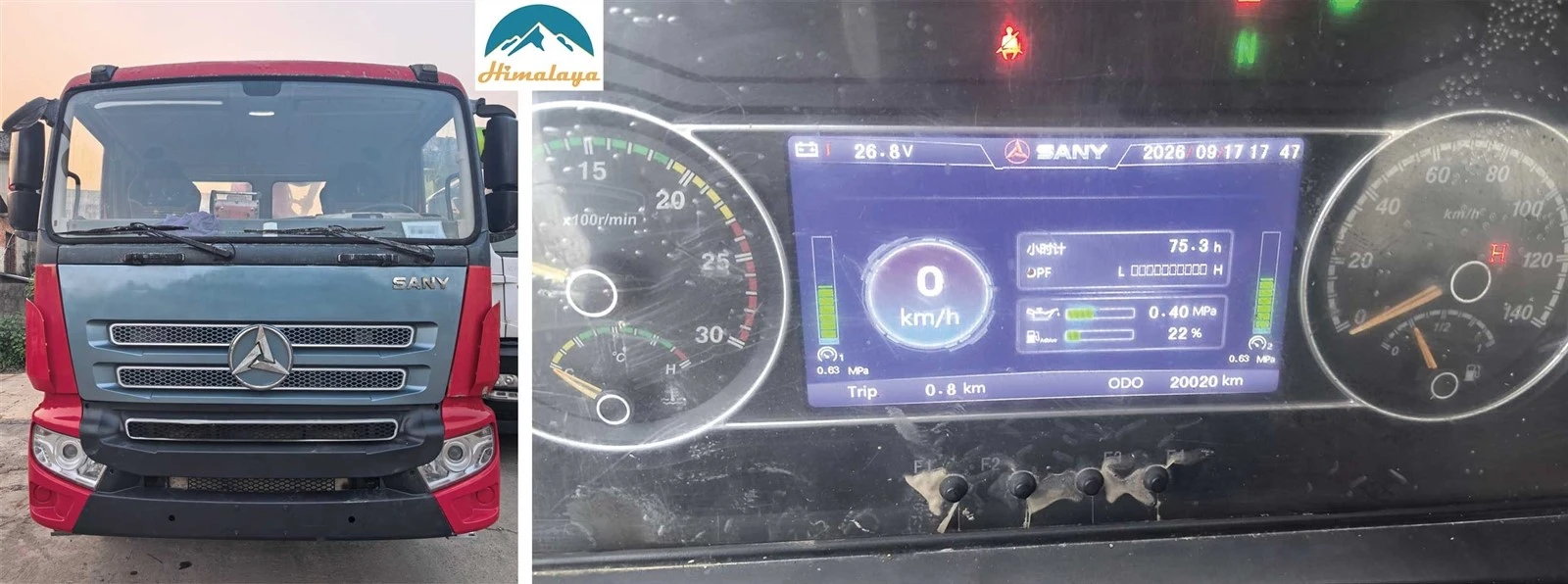

No fault codes on the cabin instrument cluster or pump controller display.
Tested hydraulic system with no oil leaks at any valve blocks or cylinder seals.
Technical Specifications:
| Category | Parameter | Item | Unit | Specification |
| Vehicle Specifications | Overall Length | - | mm | 10,800 |
| Overall Width | - | mm | 2,530 | |
| Overall Height | - | mm | 3,530 | |
| Gross Vehicle Weight | - | kg | 20,000 | |
| Boom & Outrigger Specifications | Max. Vertical Reach | - | m | 30.1 |
| Max. Horizontal Reach | - | m | 26.5 | |
| Max. Vertical Depth | - | m | 15.2 | |
| Min. Unfolding Height | - | m | 9.6 | |
| 1st Section Boom | Length | mm | 7,676 | |
| Articulation Angle | deg | 89° | ||
| 2nd Section Boom | Length | mm | 6,090 | |
| Articulation Angle | deg | 180° | ||
| 3rd Section Boom | Length | mm | 6,100 | |
| Articulation Angle | deg | 245° | ||
| 4th Section Boom | Length | mm | 6,635 | |
| Articulation Angle | deg | 230° | ||
| Turntable Rotation Angle | - | deg | 360° | |
| Front Outrigger Extension Width | - | mm | 5,850 | |
| Rear Outrigger Extension Width | - | mm | 5,000 | |
| Pumping System Specifications | Theoretical Concrete Output | - | m³/h | 108 |
| Theoretical Pumping Pressure | - | MPa | 6.6 | |
| Delivery Cylinder Inner Diameter | - | mm | 230 | |
| Delivery Cylinder Stroke | - | mm | 1,600 | |
| Hydraulic System Type | - | - | Open Loop | |
| System Hydraulic Pressure | - | MPa | 32 | |
| Hydraulic Oil Tank Capacity | - | L | 320 | |
| Water Tank Capacity | - | L | 300 | |
| Delivery Pipe Diameter | - | mm | 125 | |
| End Hose Length | - | m | 3 | |
| End Hose Diameter | - | mm | 125 | |
| Chassis Specifications | Chassis Brand | - | - | SANY |
| Chassis Model | - | - | SYM5200THB1F | |
| Engine Model | - | - | D09C6-320E0 | |
| Max. Engine Net Power | - | kW/rpm | 229 / 1900 | |
| Emission Standard | - | - | Euro VI | |
| Fuel Tank Capacity | - | L | 300 | |
| Engine Displacement | - | L | 8.7 | |
| Max. Driving Speed | - | km/h | 90 |
Why Choose Himalaya Technology Co., Ltd.
Himalaya Technology Co., Ltd., located in Changsha City, China (the world capital of construction machinery, home to SANY and Zoomlion headquarters), is a trusted and professional supplier of premium used concrete machinery and engineering equipment.
Honest & Transparent: We provide 100% authentic equipment data (genuine year of production, verified working hours, mileage, and original condition).
Comprehensive Inspection: Every unit undergoes rigorous hydraulic pressure tests, engine health diagnostics, boom crack inspections, and zero-fault-code verification prior to delivery.
One-Stop Service: Global shipping support, genuine spare parts supply, and technical guidance.
