Rotary Drilling Rig
"Rock penetration expert": widely used in medium and large pile foundation projects such as housing construction, bridges, and municipal engineering, taking into account excellent rock penetration ability and cost-effectiveness.
Rotary Drilling Rig

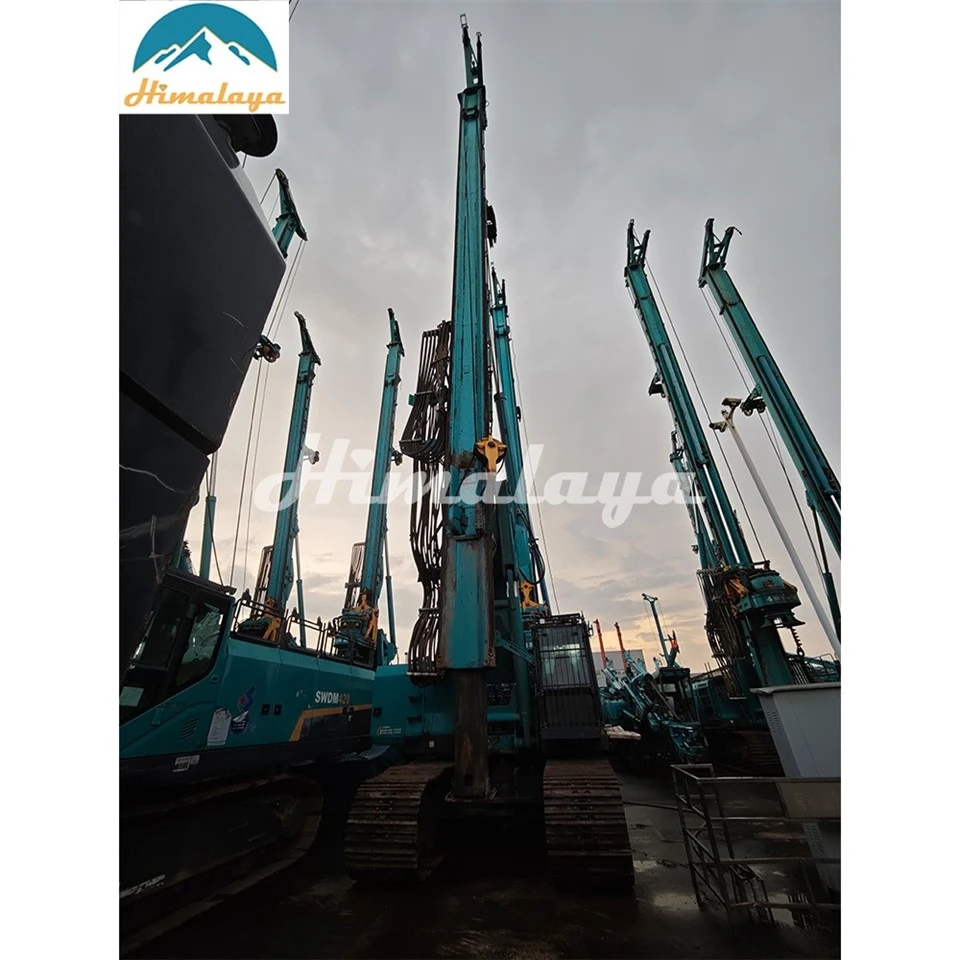

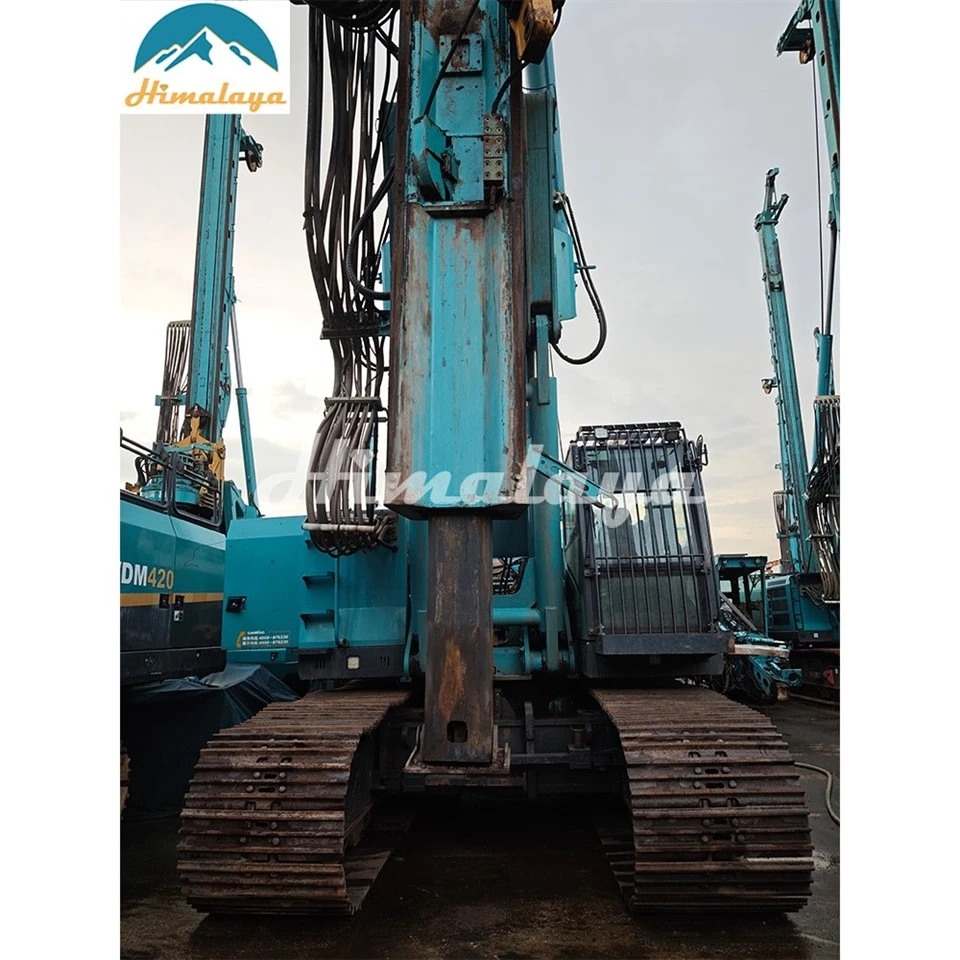

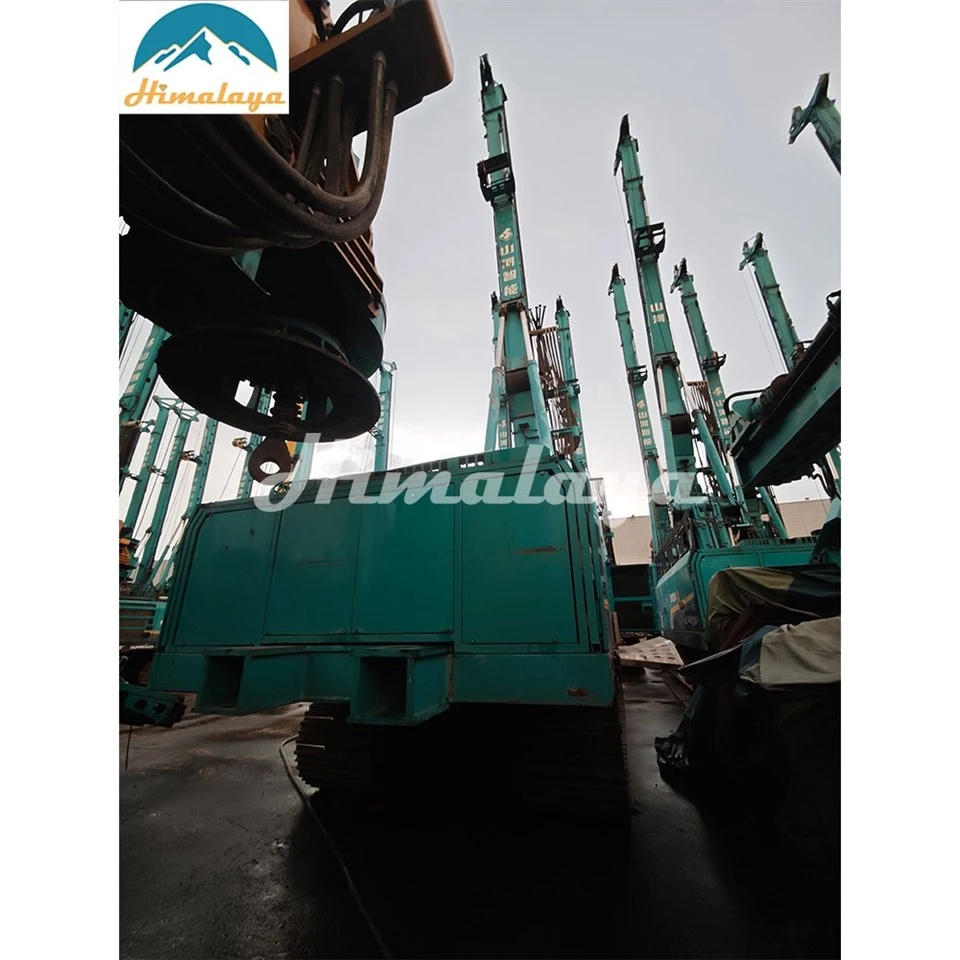

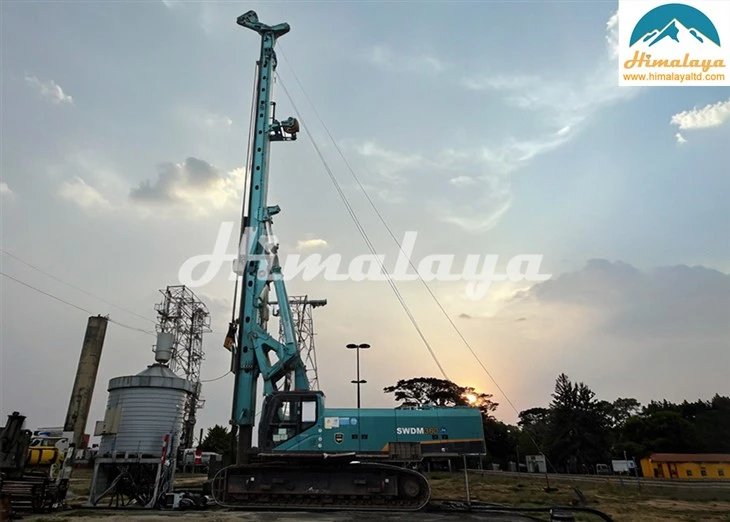

SWDM360 Multifunctional Rotary Drilling Rig
Max. Pile Diameter:2500mm
Max.drilling depth:104/68m
Max.torque of rotary drive: 360kN.m
"Rock penetration expert": widely used in medium and large pile foundation projects such as housing construction, bridges, and municipal engineering, taking into account excellent rock penetration ability and cost-effectiveness.
Efficient and rapid:
1. Equipped with a high-power engine and a three-motor power head, the power system has a reasonable power matching, strong power, large torque, and fast speed.
2. The main winch has a large diameter wire rope and a large lifting force, and the single cycle footage is large and efficient.
High reliability:
1. The π-type structure is plug-in telescopic heavy-duty chassis, large-diameter slewing bearing, double brakes, high-strength and high-rigidity platform, reinforced large-width double-boom luffing mechanism, and large-section high-rigidity mast. The structure is solid, stable and reliable.
2. The main winch wire rope is arranged in a single layer at full drilling depth, and the service life is extended by 50%.
Easy maintenance:
1. Standard centralized lubrication, regular and quantitative butter filling.
2. The lower mast is equipped with hidden telescopic legs, which can assist in placing the hole casing and facilitate the maintenance of the chassis.
Specifications of SWDM360 Rotary Drilling Rig：
| Item | Unit | Parameter | |
| Drilling | Max. Drilling Diameter | mm | 2500 |
| Max. Drilling Depth | m | 100/65 (Optional: 106/69) | |
| Engine | Brand | - | Cummins |
| Model | - | X15 | |
| Rated Power | kW/rpm | 410/2100 | |
| Power Head | Max. Torque | KN·m | 360 |
| Rotary Speed | rpm | 6~29 | |
| Main Winch | Max. Lifting Force | kN | 390 |
| Max. Lifting Speed | m/min | 72 | |
| Wire Rope Diameter | mm | 36 | |
| Crowd System | Max. Crowd Force | kN | 300 |
| Max. Pull-Up Force | kN | 360 | |
| Max. Stroke | mm | 6000 | |
| Auxiliary Winch | Max. Lifting Force | kN | 110 |
| Max. Lifting Speed | m/min | 65 | |
| Wire Rope Diameter | mm | 24 | |
| Mast | Left/Right Inclination | ° | ±4 |
| Forward/Backward Inclination | ° | 5/90 | |
| Undercarriage | Track Shoe Width | mm | 900 |
| Track Gauge (Retracted/Extended) | mm | 3200~4700 | |
| Undercarriage Length | mm | 5912 | |

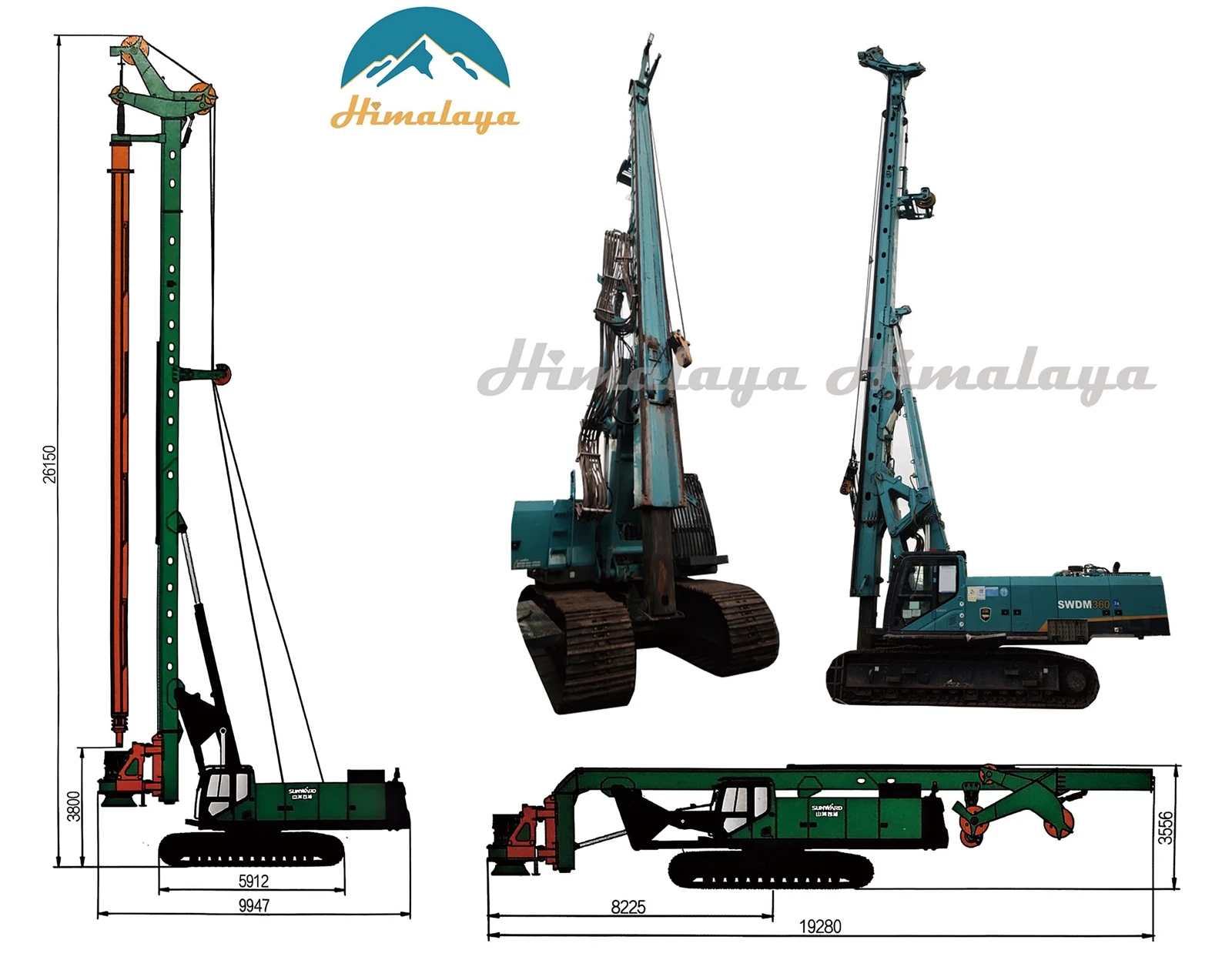

| Overall Machine | Working Height | mm | 26150 |
| Transport Width | mm | 3200 | |
| Operating Weight | t | 116 | |
| Kelly Bar Specification | Drilling Depth / m | Weight / kg | Remarks |
| JS530-4X18m | 65 | 17900 | Standard |
| JS530-4X19m | 69 | 18790 | Optional |
| MZ530-6X18m | 100 | 18900 | |
| MZ530-6X19m | 106 | 19808 | Optional |
HIMALAYA is a professional supplier of all brands of used rotary drilling rigs in China, such as SANY,ZOOMLION,Sunward, the products with good condition are ready for sales, Welcome to get price and quotation from us or check the products condition on site.
